Circuit Inspection

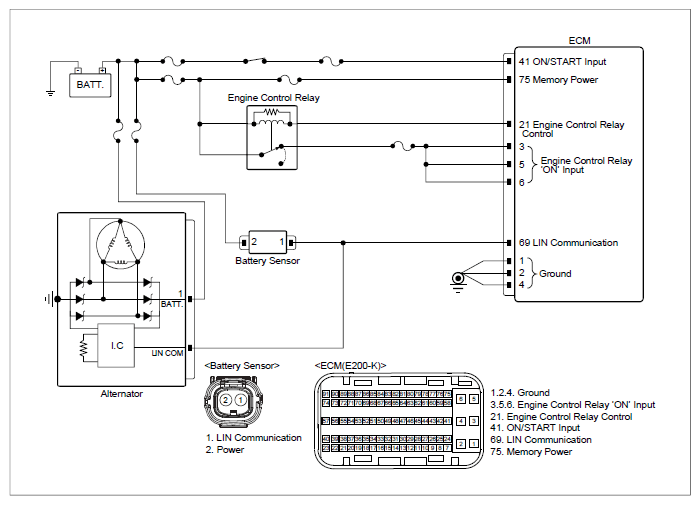

G12781926Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component and ECM.
 Alternator connector 1 (LIN COM) ECM connector 69 (LIN COM) below 1Ω
Alternator connector 1 (LIN COM) Chassis ground - ∞ (Infinite)Ω

Good

No Good
