Repair Procedures: Replacement: [2WD]

WARNING: This page is about a different variant/trim than selected.

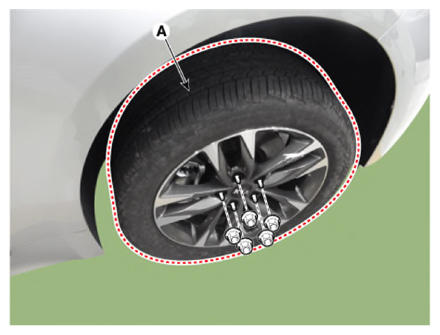

Remove wheel nuts, front wheel and tire (A) from front hub.
Tightening torque:

107.9 -127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the wheel nuts when removing the front wheel and tire (A).

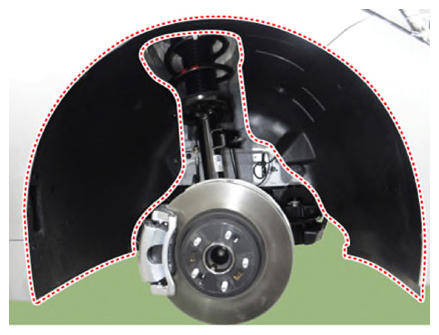

Remove the front wheel guard.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front stabilizer bar.
(Refer to Suspension System - " FRONT STABILIZER BAR ")
Remove the engine room side cover.
G 2.0 T-GDI THETA II (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

G 3.3 T-GDI LAMBDA II (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER )

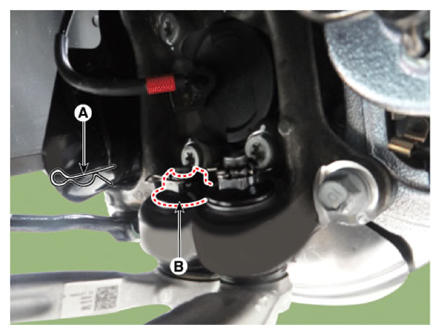

Loosen the lateral arm pin (A) and nut (B).
Tightening torque:

88.3 -107.9 N.m (9.0 -11.0 kgf.m, 65.1 -79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the compression arm pin (A) and nut (B).
Tightening torque:

88.3 -107.9 N.m (9.0-11.0kgf.m, 65.1 -79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

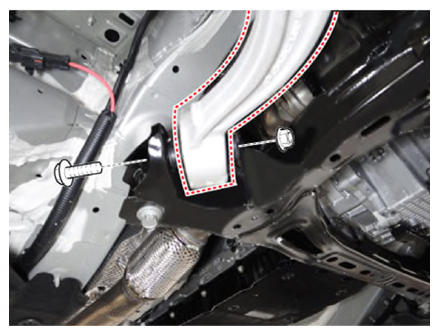

Loosen the compression arm bolt & nut from the sub frame.
Tightening torque:

156.9 -176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

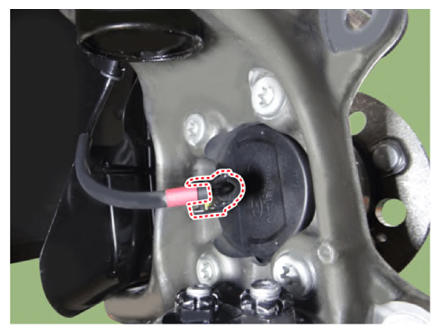

Disconnect the wheel speed sensor connector.

Courtesy of KIA MOTORS AMERICA, INC.

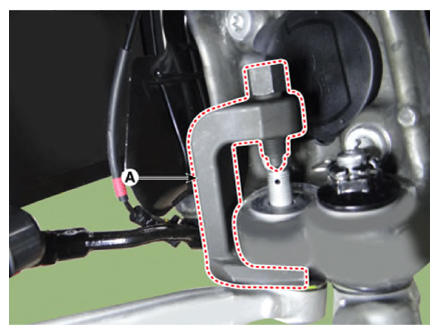

Remove the lateral arm by using the ball joint remover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the compression arm by using the ball joint remover (A).

Courtesy of KIA MOTORS AMERICA, INC.

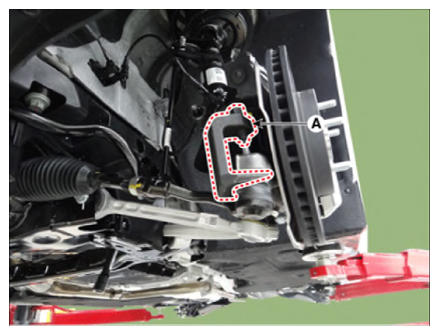

Remove the brake caliper.
(Refer to Brake System - " FRONT DISC BRAKE ")

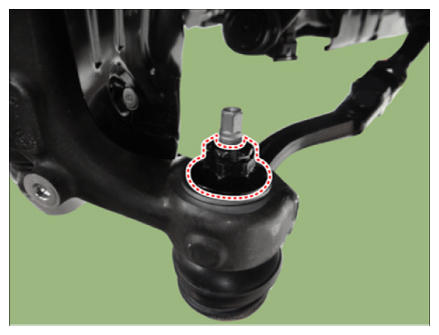

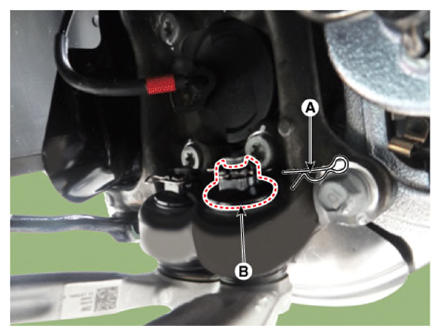

Remove the tie rod end nut.
Tightening torque:

88.3 - 107.9 N.m(9.0 - 11.0 kgf..m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the knuckle by using the ball joint remover (A).

Courtesy of KIA MOTORS AMERICA, INC.

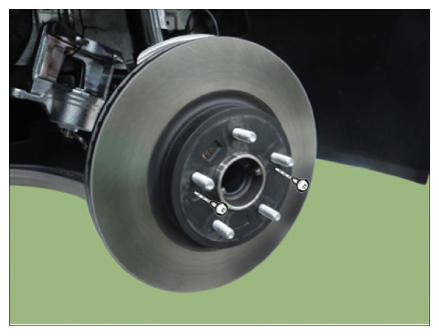

Loosen the screw, and then remove the brake disc.
Tightening torque:

4.9-5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

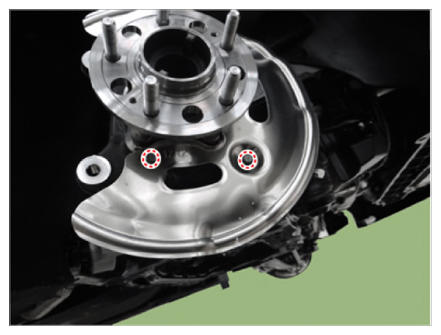

Loosen the dust cover bolt and then remove the dust cover.
Tightening torque:

10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

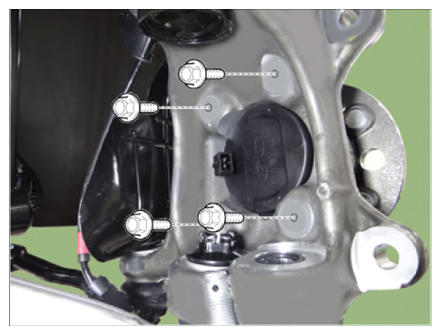

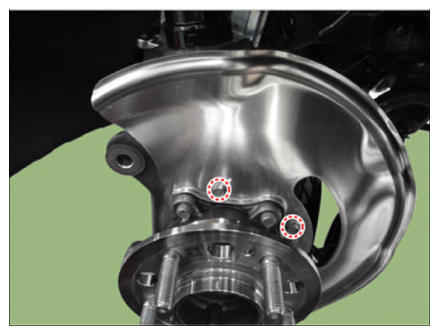

Loosen the hub assembly bolts and then remove the hub assembly.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

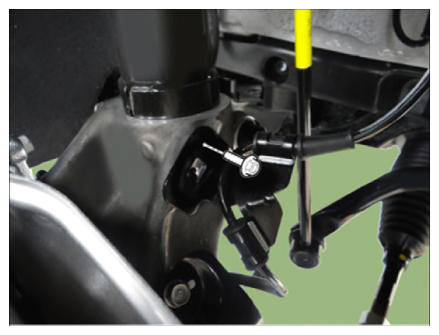

Loosen the wheel speed sensor bracket bolt and then remove the wheel speed sensor bracket.
Tightening torque:

6.9 -10.8 N.m (0.7- 1.1 kgf.m, 5.1 -7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

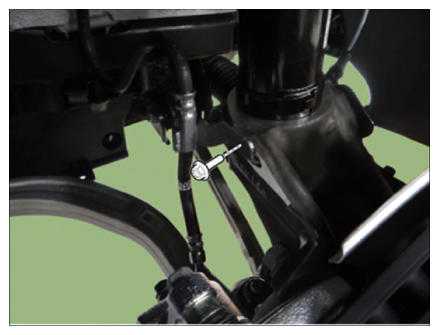

Loosen the brake caliper hose bracket bolt.
Tightening torque:

6.9 -10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

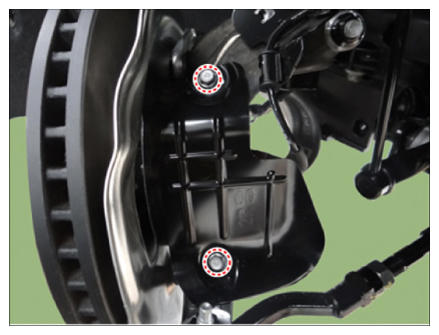

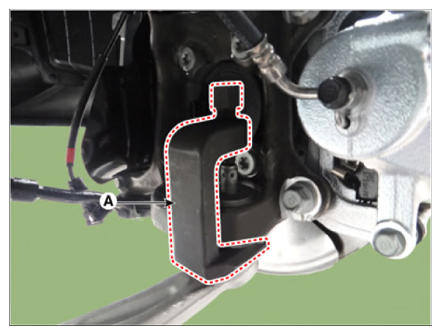

Loosen the brake cooling cover bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

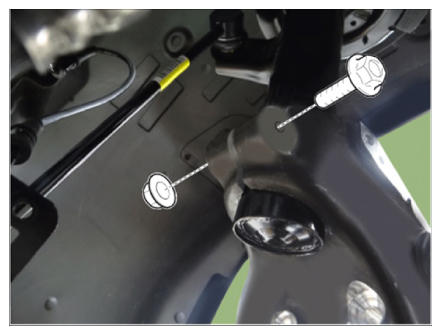

Loosen the knuckle upper bolt & nut.
Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

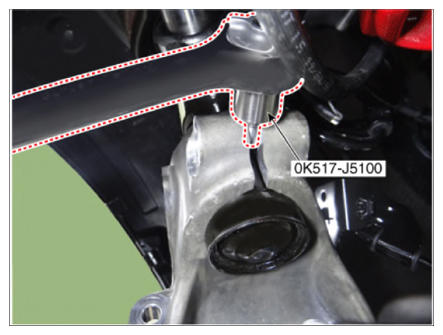

Remove the knuckle by using the SST (0K517-J5100).
Reference value: Below 8.0 mm (0.31 in.)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to exceed 8 mm (0.31 in.) because it may cause knuckle quality issues.
Install in the reverse order of removal.
Check the front alignment.
(Refer to Suspension System - "ALIGNMENT ")
