Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

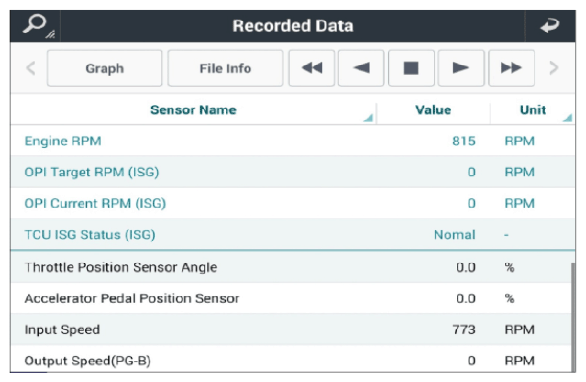

Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Monitor parameter in "Current Data" with KDS/GDS.	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

No Good
