[Wheel-G Sensor]: [Front]

Turn ignition switch OFF and disconnect the negative (-) battery cable.

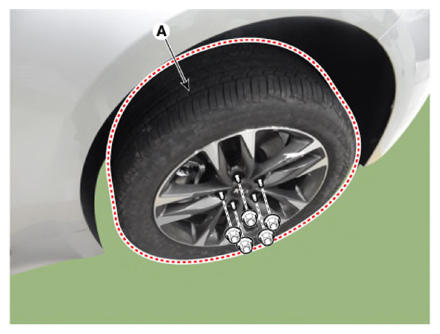

Remove wheel nuts, wheel and tire (A) from hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the wheel bolts when removing the wheel and tire (A).

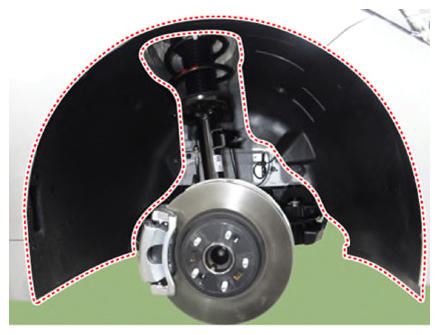

Remove the front wheel guard.

Courtesy of KIA MOTORS AMERICA, INC.

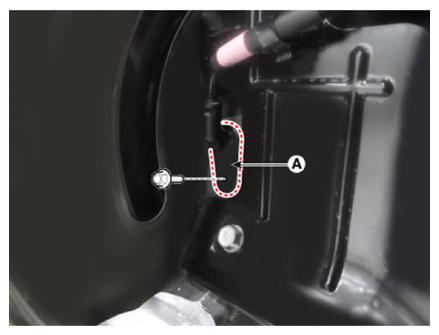

Loosen the wheel speed sensor bolt (A) and then disconnect the wheel speed sensor.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

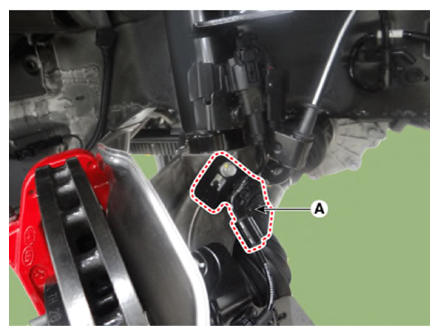

Remove the wheel speed sensor bracket (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

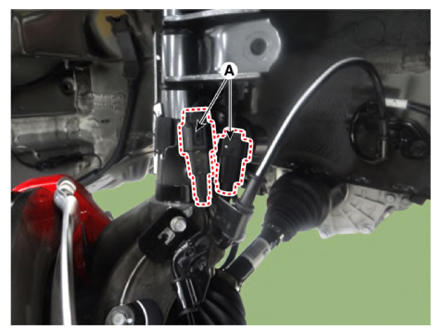

Disconnect the ECS connector (A) and then remove the wheel speed sensor bracket.

Courtesy of KIA MOTORS AMERICA, INC.

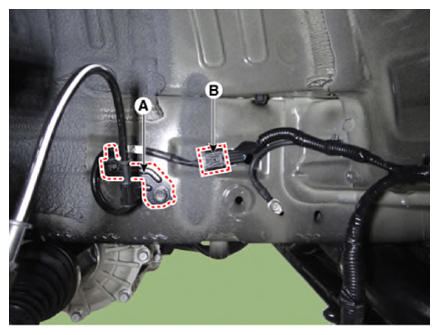

Remove the bracket (A) and then disconnect the connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
