[Body G Sensor]: Front

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

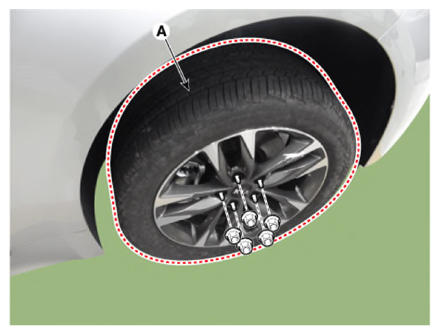

  2. Remove wheel nuts, wheel and tire (A) from hub.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

    G12790001Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to damage the wheel bolts when removing the wheel and tire (A).
  3. Remove the front wheel guard.

    (Refer to " FRONT WHEEL GUARD  ")

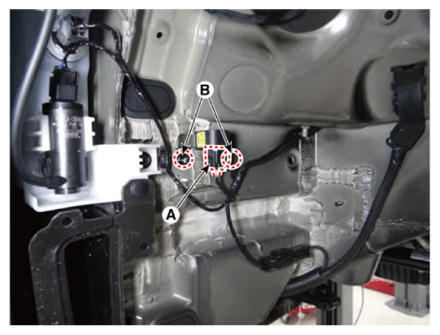

  4. Disconnect the ECS-G sensor connector (A).
  5. Loosen the nut and then ECS-G sensor (B).

    [RH, LH]

    G12790002Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
