Lubrication System - 2.0L
>>
Engine Oil
>>

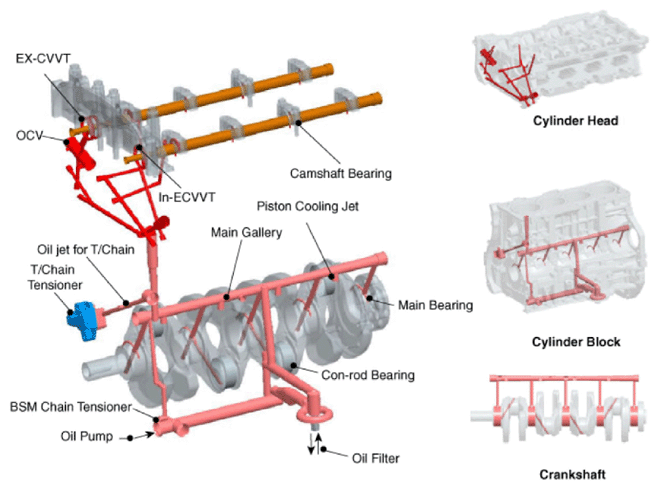

Flow Diagram

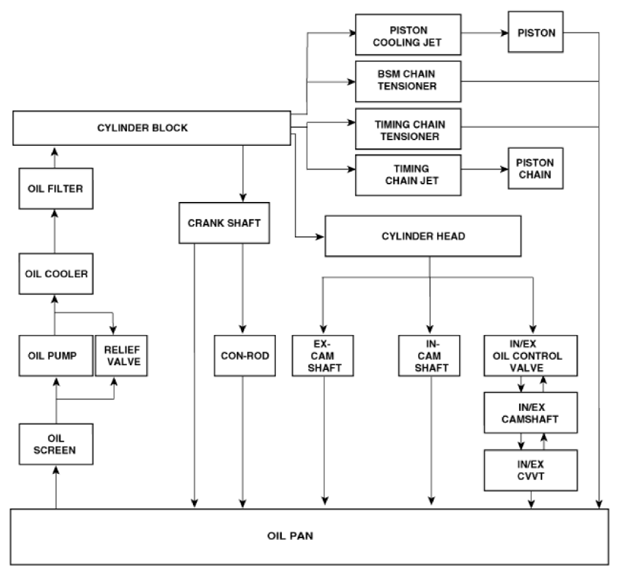

Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
