Diagnosis With KDS

  1. It can quickly diagnose defects of power window by communicating with KDS. KDS can operate actuator forcefully, monitor input/output values and self diagnose.
  2. Select model and "BCM".
  3. Select the "SJB" to check.

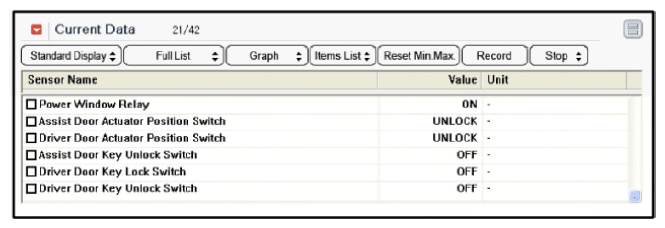

  4. Select "Current Data" if you wish to check the current data of power window system. This menu provides input/output status of SJB.
    G12822440Courtesy of KIA MOTORS AMERICA, INC.
  5. If you wish to check the power door lock operation forcefully, select "Actuation test".
G12822441Courtesy of KIA MOTORS AMERICA, INC.
