Circuit Diagram

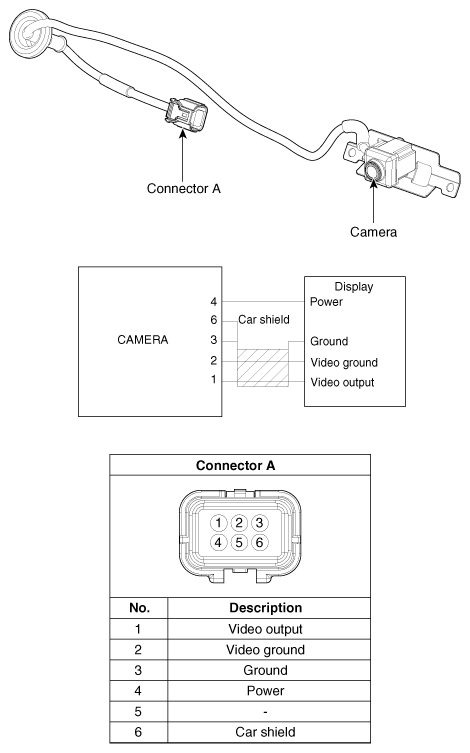

Fig 1: Back View Camera System Circuit Diagram And Connector End View
G12235326Courtesy of KIA MOTORS AMERICA, INC.
