Signal Waveform & Data

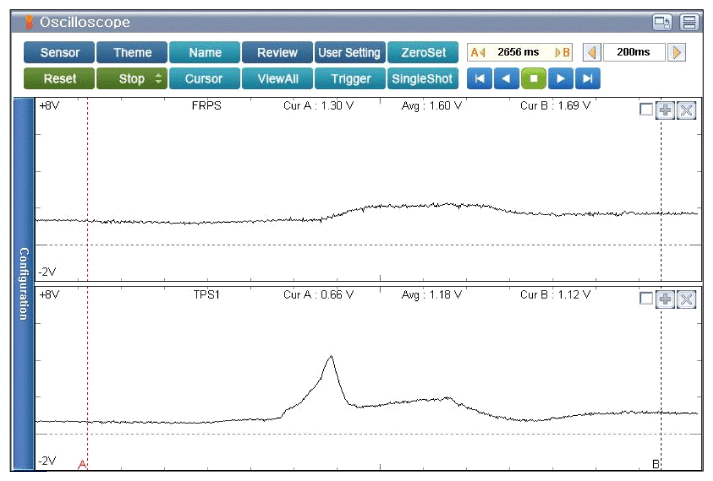

Fig 1: Screen Display - Normal Waveforms Of FPRS & TPS1 During Acceleration
G12276465Courtesy of KIA MOTORS AMERICA, INC.

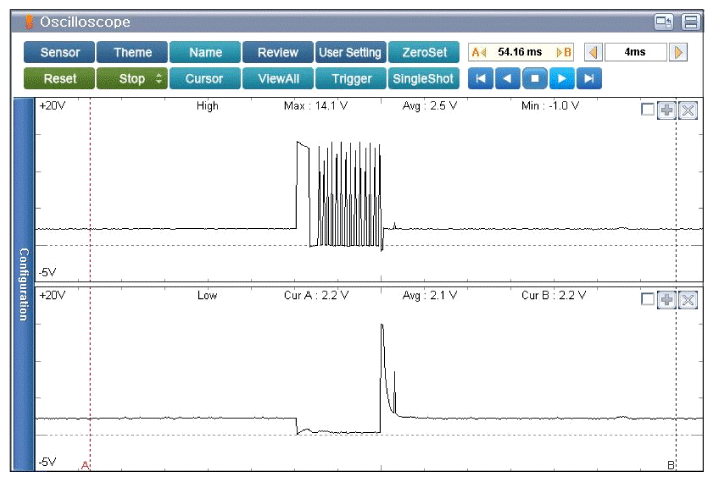

Fig 2: Screen Display - Normal Waveforms Of FPR At Engine Idle
G12276466Courtesy of KIA MOTORS AMERICA, INC.

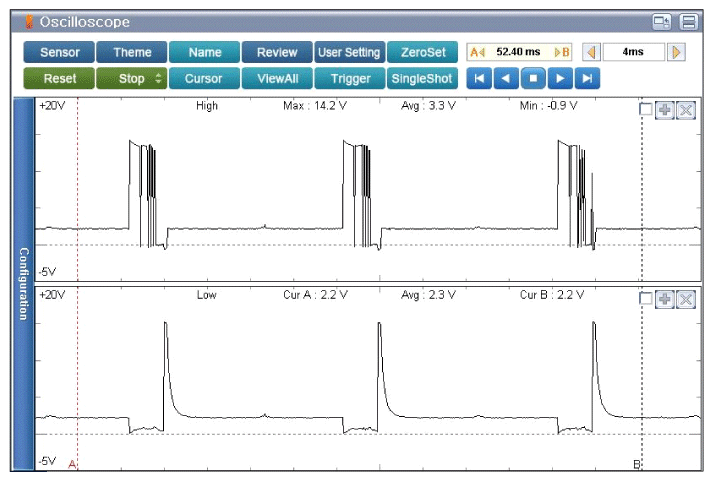

Fig 3: Screen Display - Normal Waveforms Of FPR At Approx 2000 RPM
G12276467Courtesy of KIA MOTORS AMERICA, INC.
