Repair Procedures: Inspection
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF.
- Disconnect the temperature control actuator connector.
- Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
Verify that the temperature control actuator operates to the warm position when connected in reverse.

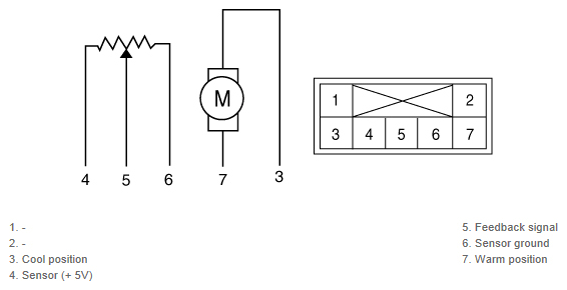

Temperature Control Actuator [LH]
Courtesy of KIA MOTORS AMERICA, INC.

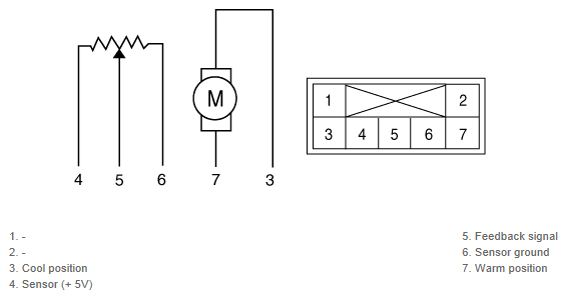

Temperature Control Actuator [RH]
- Connect the temperature control actuator connector.
- Turn the ignition switch ON.
- Check the voltage between terminal 5 and 6.DOOR POSITION AND VOLTAGE SPECIFICATION
Door Position Voltage (V) Error Detecting Max. cooling 0.3 ± 0.15 Low voltage: 0.1V or less
High voltage: 4.9V or moreMax. heating 4.7 ± 0.15 It will feedback the current position of the actuator to controls.
- If the measured voltage is not within specification, substitute with a known-good temperature control actuator and check for proper operation.
- Replace the temperature control actuator if it is proved that there is a problem with it.
