Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

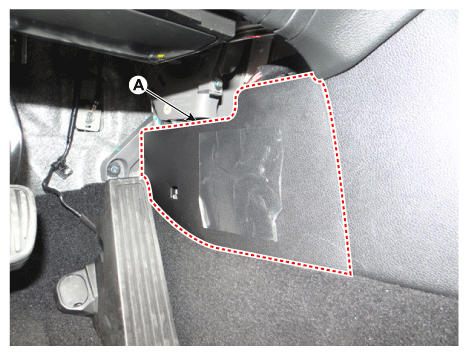

  2. Remove the console side cover [LH] (A).
    G12352223Courtesy of KIA MOTORS AMERICA, INC.

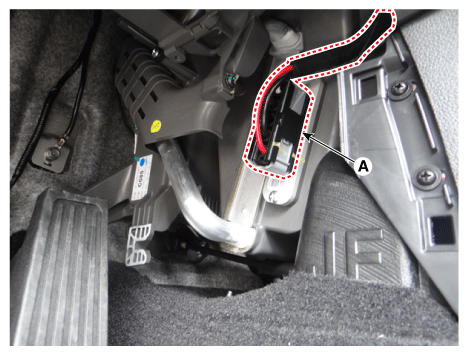

  3. Disconnect the PTC heater connector (A).
    G12352224Courtesy of KIA MOTORS AMERICA, INC.

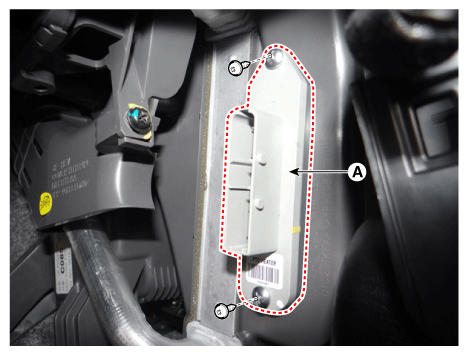

  4. Remove the PTC heater core (A) in the direction of arrow after loosening the screws.
G12352225Courtesy of KIA MOTORS AMERICA, INC.

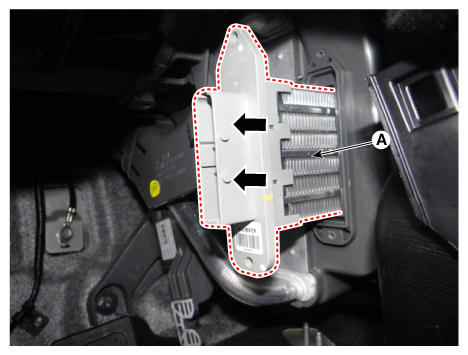

G12352226Courtesy of KIA MOTORS AMERICA, INC.
