Cooling Fan Control Module

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
  2. Remove the air duct.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

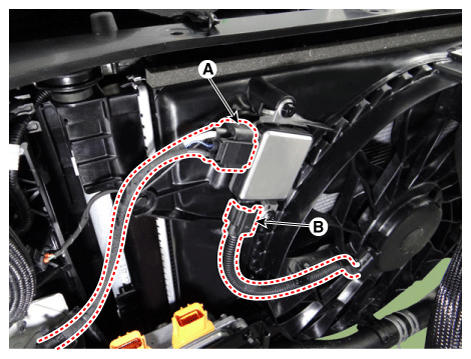

  3. Disconnect the cooling fan control module connector (A) and cooling fan motor connector (B).
    G12352695Courtesy of KIA MOTORS AMERICA, INC.

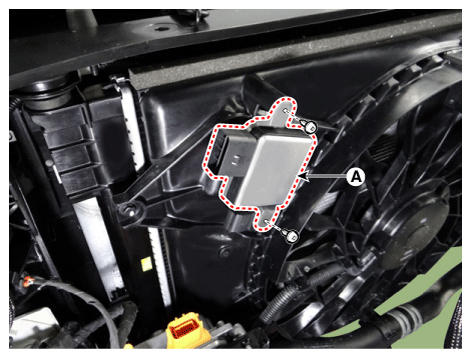

  4. Remove the cooling fan control module (A).

    Tightening Torque:

    4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft)

    G12352696Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
