Multifunction Switch Inspection
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

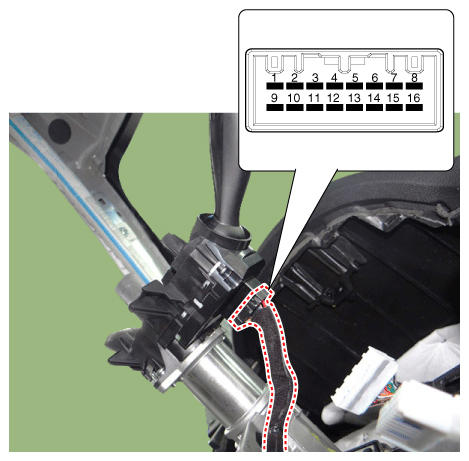

- Check for continuity between the terminals in each switch position according to the table.
[LHD]
LHD RESISTANCE SPECIFICATIONS
| Switch | Switch Position | Switch Terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Wiper switch | MIST | 1-9 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1, 800 | ||
| HIGH | 5, 700 | ||
| Wiper intermittent volume | Volume 1 | 7-9 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1, 310 | ||
| Volume 4 | 2, 610 | ||
| Volume 5 | 7, 310 |
[RHD]
RHD RESISTANCE SPECIFICATIONS
| Switch | Switch Position | Switch Terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Wiper switch | MIST | 3-16 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1, 800 | ||
| HIGH | 5, 700 | ||
| Wiper intermittent volume | Volume 1 | 2-16 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1, 310 | ||
| Volume 4 | 2, 610 | ||
| Volume 5 | 7, 310 |
