Washer Fluid Level Sensor Switch

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the front wheel guard [RH].

    (Refer to Body - "FRONT WHEEL GUARD ")

  4. Drain the washer fluid to less than 650 cc.

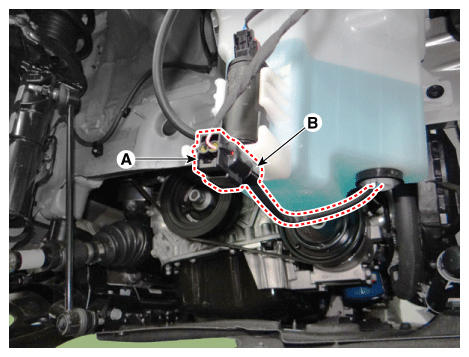

  5. Remove the washer fluid level sensor switch (B) after disconnecting the connector (A).
G12351993Courtesy of KIA MOTORS AMERICA, INC.
