Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the glove box assembly.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING ")

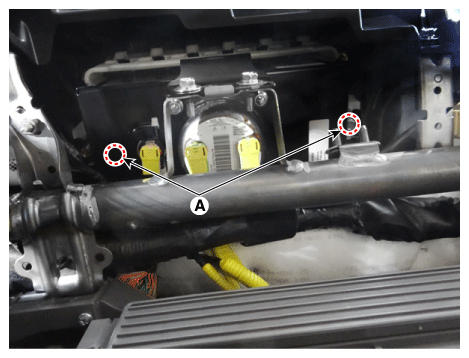

  3. Remove the PAB mounting bolts (A).

    Tightning torque:

    3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.8 - 3.6 lb.ft)

G12350090Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
