Trunk Open Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

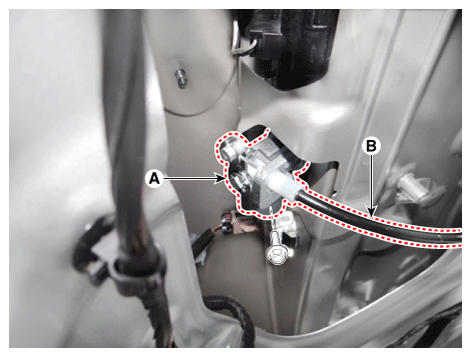

  3. Remove the trunk lid key holder (A) after loosening the mounting bolt.
  4. Disconnect the key holder cable (B).
    G12351689Courtesy of KIA MOTORS AMERICA, INC.

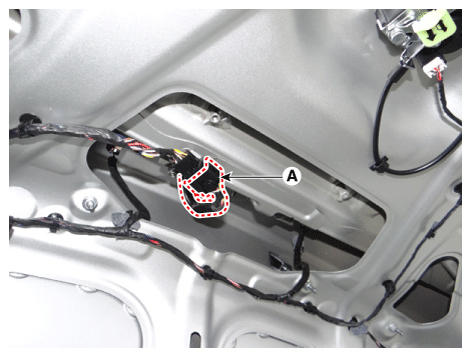

  5. Disconnect the trunk open switch connector (A).
    G12351690Courtesy of KIA MOTORS AMERICA, INC.

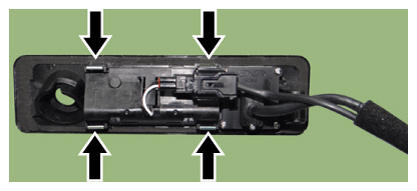

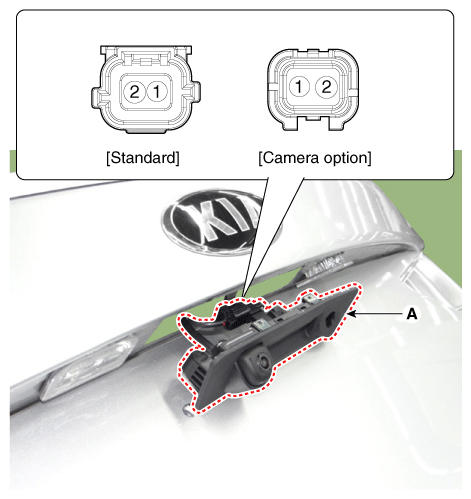

  6. Remove the trunk open switch assembly (A) after disengaging mounting clips.
    G12351691Courtesy of KIA MOTORS AMERICA, INC.
    G12351692Courtesy of KIA MOTORS AMERICA, INC.
  7. Check for continuity between the terminals and ground according to the table.
G12351693Courtesy of KIA MOTORS AMERICA, INC.
