Radar Sensor Alignment (SCC/AEB)

- Parking (Stop) mode -

1. Ignition "ON".

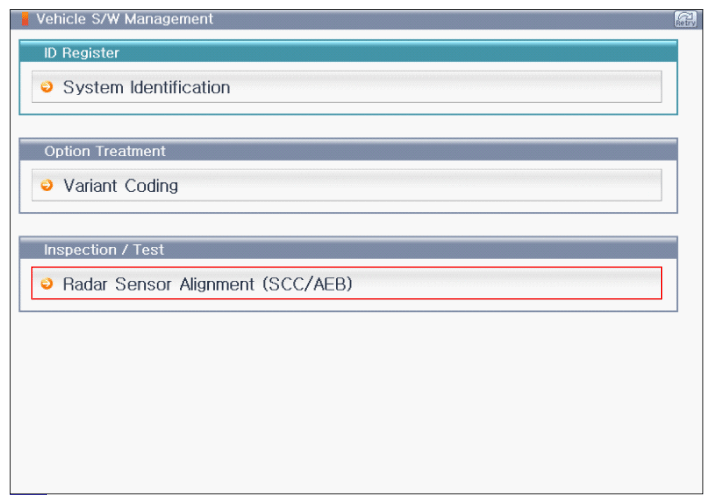

2. Perform  "Vehicle S/W Management" → "Radar Sensor Alignment (SCC/AEB)" with KDS/GDS. (Fig 1)

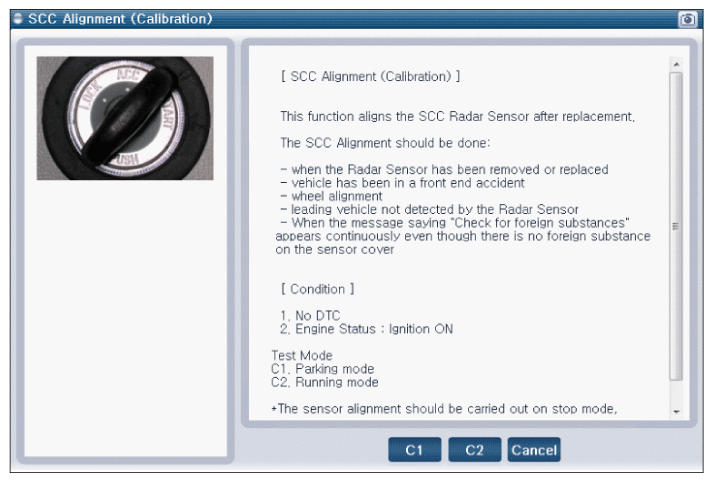

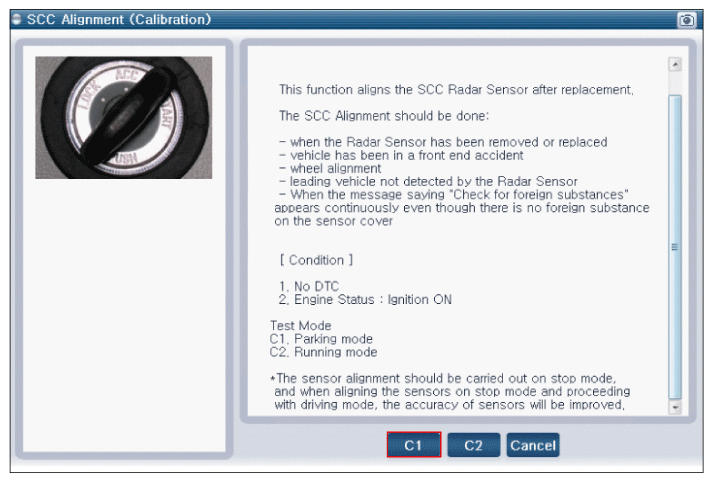

3. Select the [C1]. (Fig 1, Fig 1)

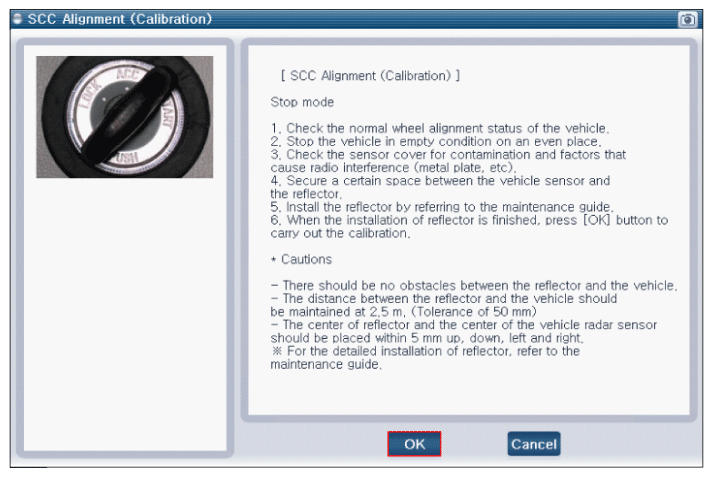

4. Satisfy the vehicle to the conditions of Parking (Stop) mode. (Fig 1)
5. Press [OK] button to carry out the calibration.

- Running (Driving) mode -

1. Ignition "ON".

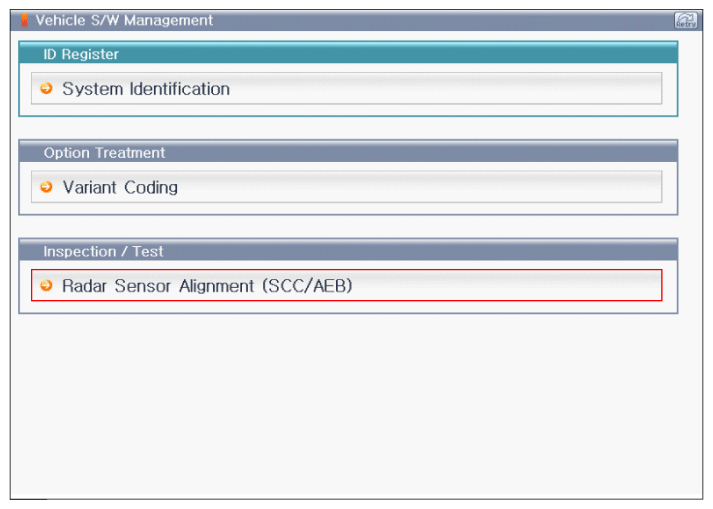

2. Perform  "Vehicle S/W Management" → "Radar Sensor Alignment (SCC/AEB)" with KDS/GDS. (Fig 1)

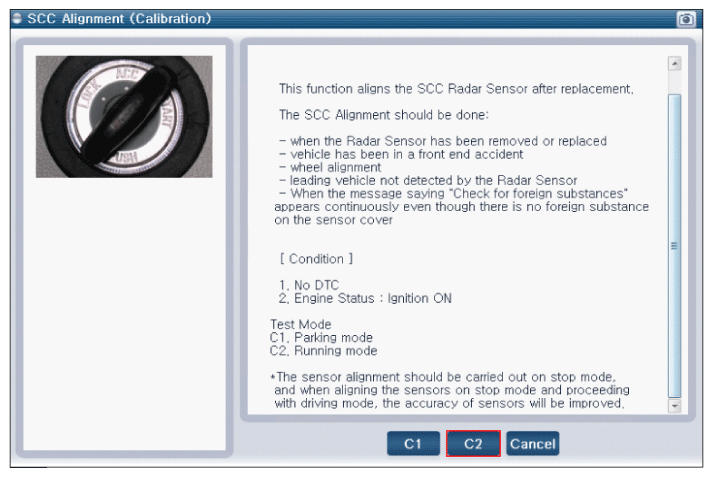

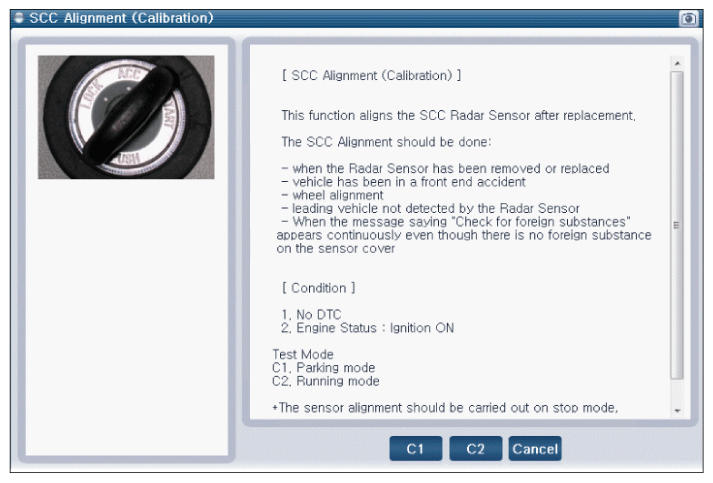

3. Select the [C2]. (Fig 1, Fig 1)

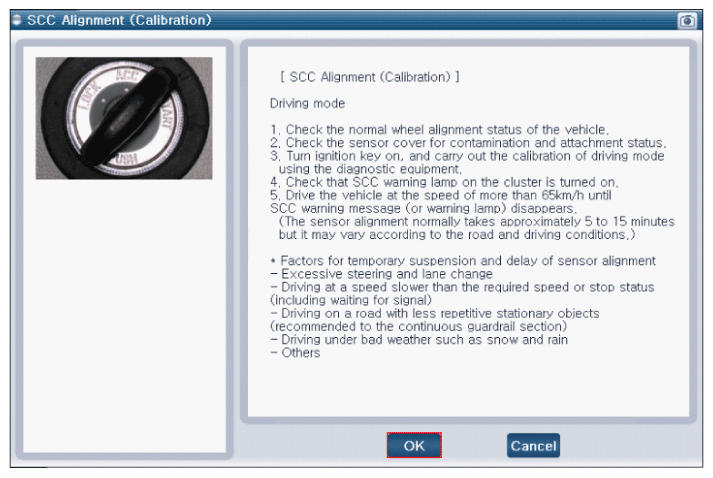

4. Satisfy the vehicle to the conditions of Running (Driving) mode. (Fig 1)

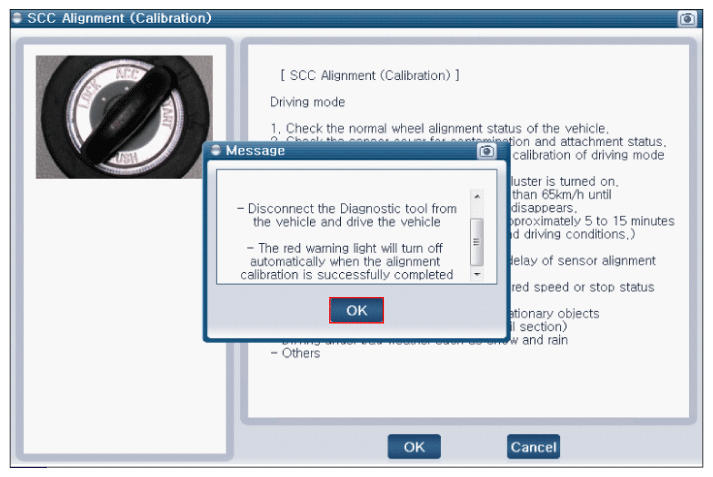

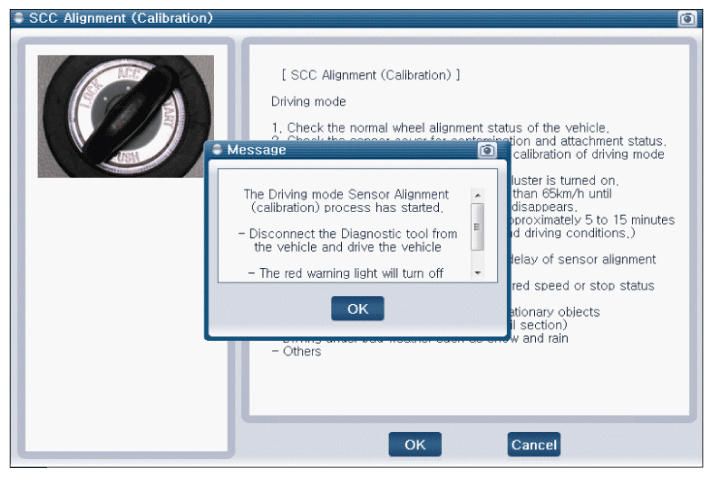

5. Once running (driving) mode sensor calibration is started, drive the vehicle until the red warning lamp is turned "OFF". (Fig 1, Fig 1)
6. Warning lamp is turned "OFF", when calibration is successfully finished.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   : Parking (Stop) mode

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   : Running (Driving) mode
