Underdrive Brake Control Solenoid Valve (UD/B_VFS)
>>
Components And Components Location
>>
Component Location
Component Location

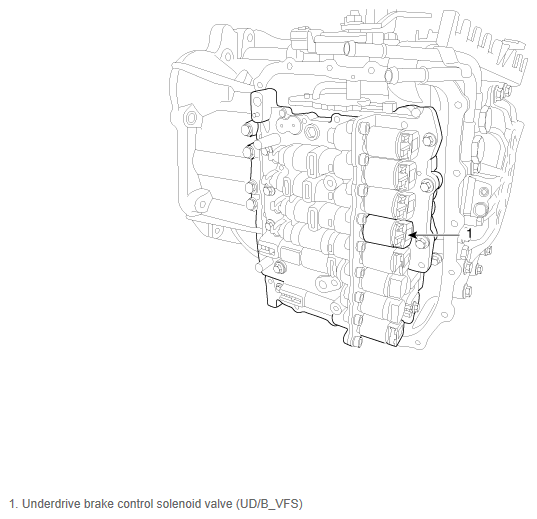

Fig 1: Underdrive Brake Control Solenoid Valve (UD/B-VFS) Component
Courtesy of KIA MOTORS AMERICA, INC.
