[Connector B]
(Mirror Switch)
| No. | Description |
|---|---|
| 1 | Mirror unfolding switch |
| 2 | - |
| 3 | GND |
| 4 | - |
| 5 | - |
| 6 | Mirror folding switch |
| 7 | Mirror vertical switch |
| 8 | Left mirror horizontal switch |
| 9 | Left mirror common |
| 10 | Right mirror common |
| 11 | Right mirror horizontal switch |
| 12 | ACC |

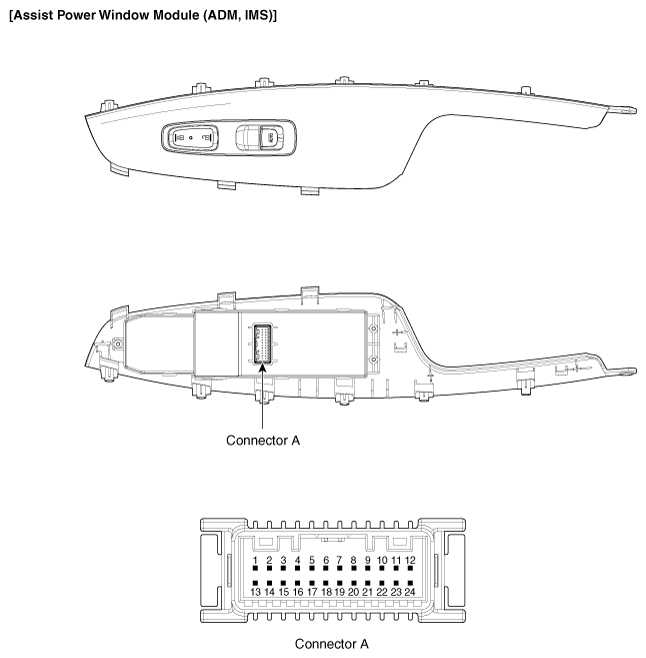

Assist Power Window Switch
(Safety + Non door lock)
| No. | Description |
|---|---|
| 1 | - |
| 2 | Front right power window switch |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | - |
| 7 | GND |
| 8 | - |
(All Safety + Non Heater Seat)
| No. | Description |
|---|---|
| 1 | - |
| 2 | Window switch |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | - |
| 7 | GND |
| 8 | - |
