Component Location

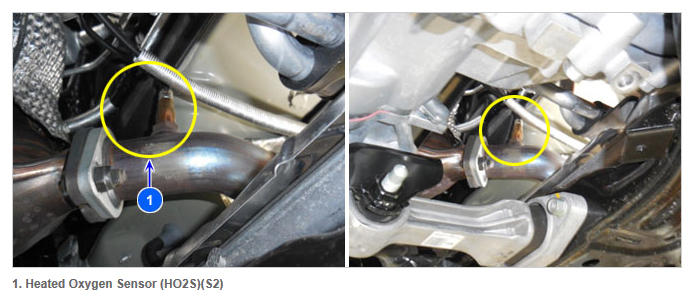

Fig 1: Locating Heated Oxygen Sensor (HO2S) (S2) Component

G12325235

Courtesy of KIA MOTORS AMERICA, INC.
