System Inspection

■ Resetting Adaptive Values

1. Connect KDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF"

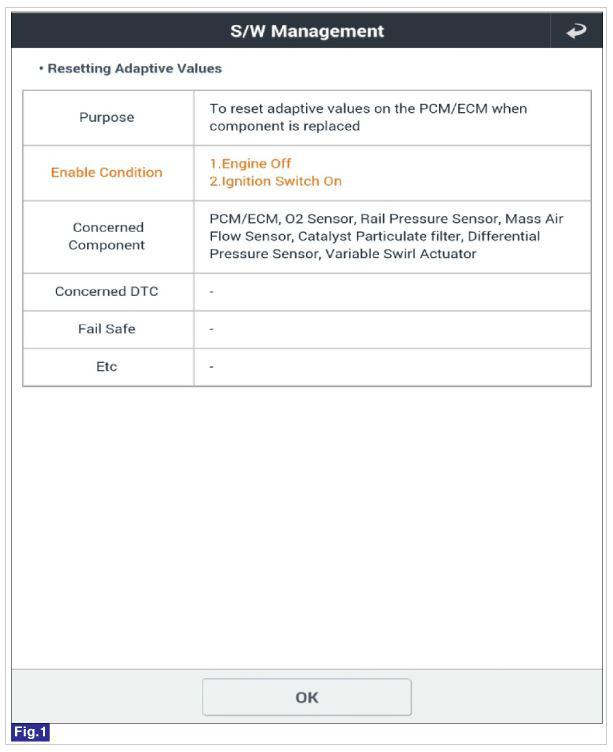

3. Select the "Vehicle S/W Management  " about related DTC with KDS.
   Fig 1: Scantool Display - Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.
4. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   Fig 2: Scantool Display - Verification Of Vehicle Repair

   Courtesy of KIA MOTORS AMERICA, INC.

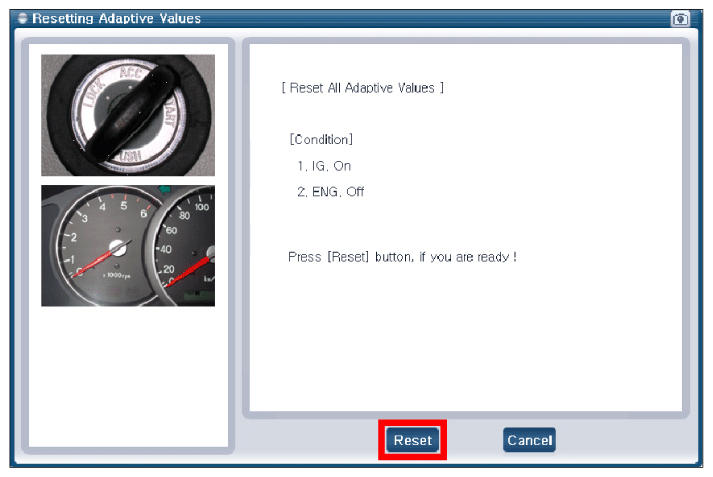

5. Press "Reset" button to progress for next procedure.
   Fig 3: Scantool Display - Reset Button To Progress For Next Procedure

   Courtesy of KIA MOTORS AMERICA, INC.

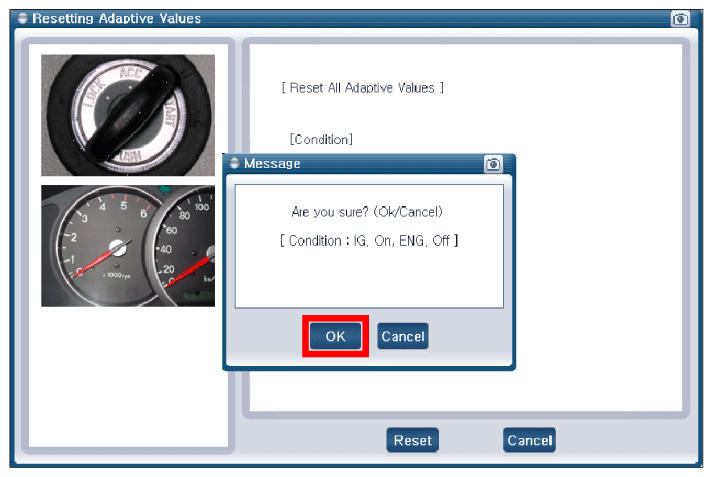

6. Press "OK" button (IG ON, ENG OFF).
   Fig 4: Scantool Display - OK Button (IG ON And ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

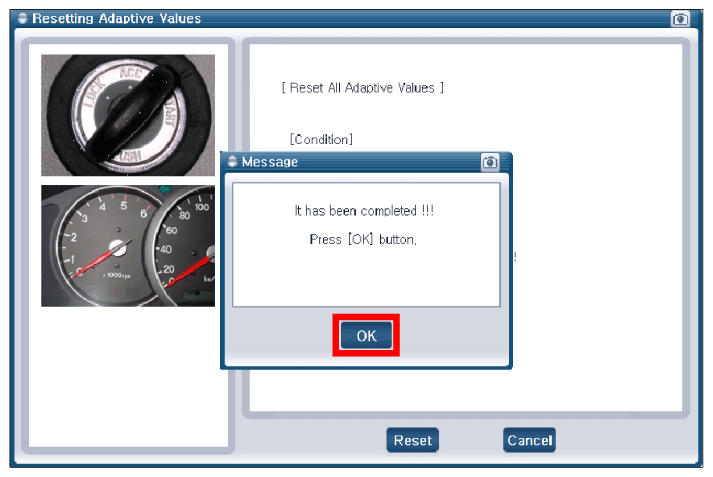

7. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
