Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to Engine And Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the front bumper.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ")
Remove the air guard (A).

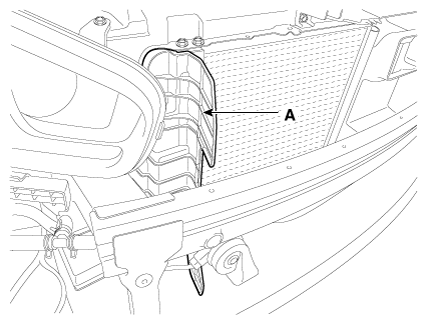

Fig 1: Locating Air Guard
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator upper member assembly (A).

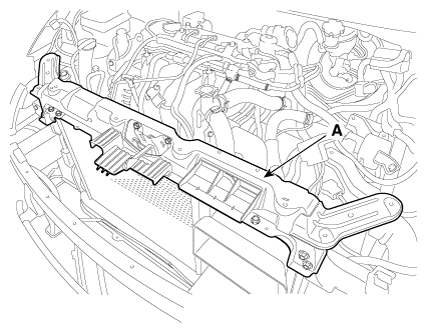

Fig 2: Locating Radiator Upper Member Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the radiator upper hose (A).

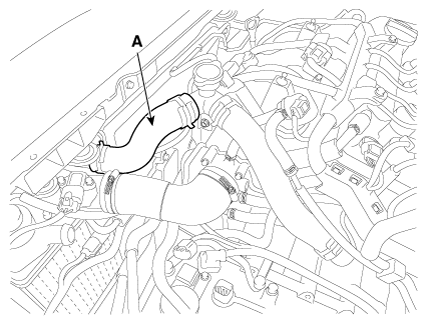

Fig 3: Locating Radiator Upper Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the radiator lower hose (A).

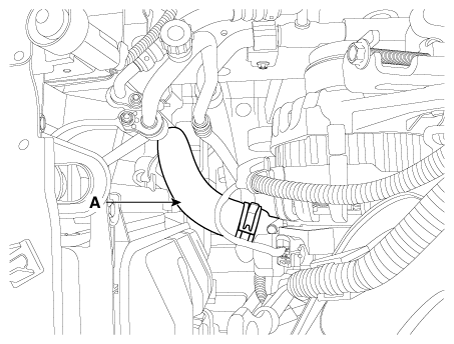

Fig 4: Locating Radiator Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the left and right headlight assembly.
(Refer to Body Electrical System - "HEADLAMPS ")
Loosen the bolt (A) to separate the condenser from radiator.

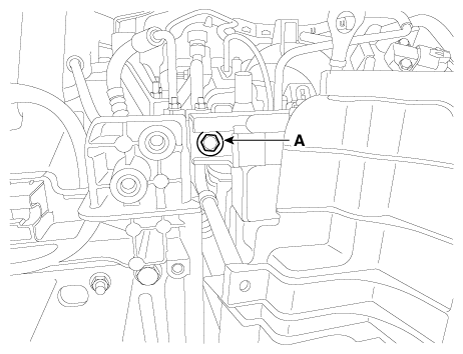

Fig 5: Locating Condenser Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Pull the radiator (A) upward and remove it from engine room.

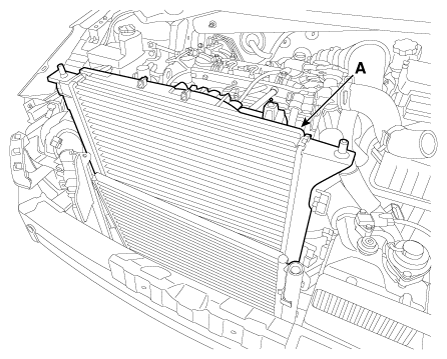

Fig 6: Locating Radiator
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator (A) from cooling fan assembly (B).
Tightening Torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft)

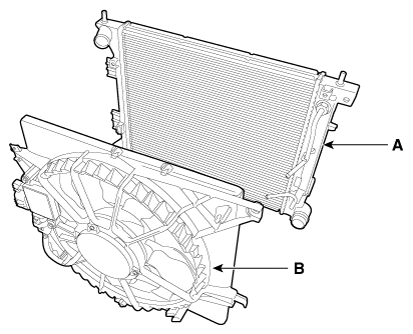

Fig 7: Locating Radiator And Cooling Fan Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
