Monitor KDS/GDS Data

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Shift lever position "P" and Ignition "ON"
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Actuation Test" of concerned component with KDS/GDS.
 Fig 1

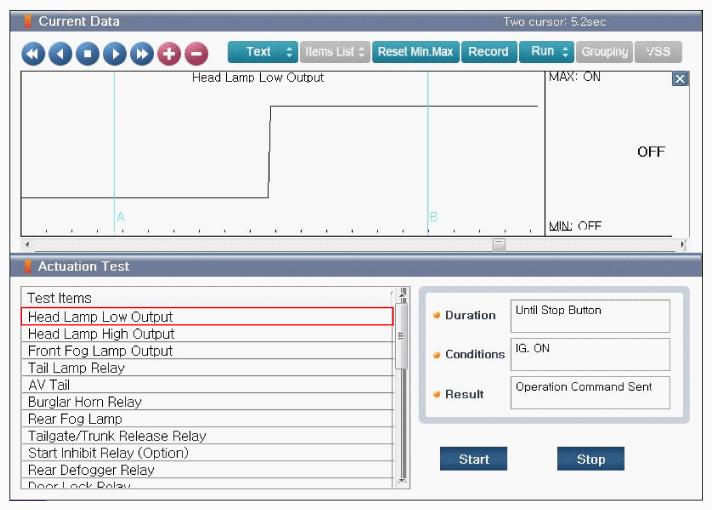

Fig 1: Screen Display - Head Lamp Low Output Of Actuation Test (1 Of 2)
G12328222Courtesy of KIA MOTORS AMERICA, INC.

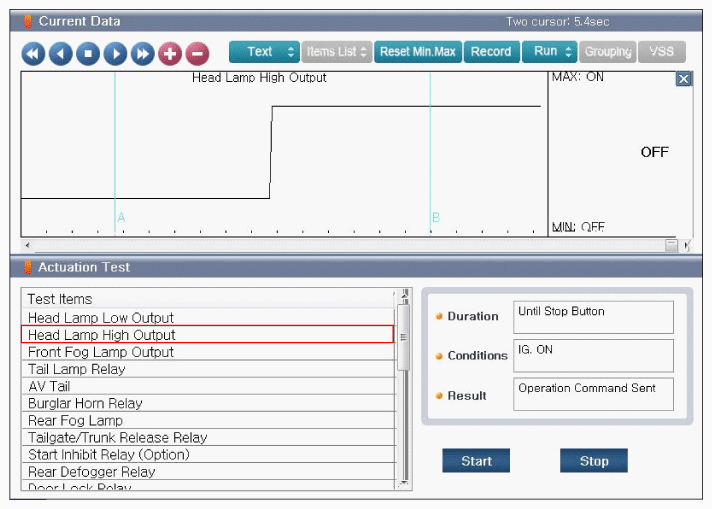

Fig 2: Screen Display - Head Lamp Low Output Of Actuation Test (2 Of 2)
G12328223Courtesy of KIA MOTORS AMERICA, INC.

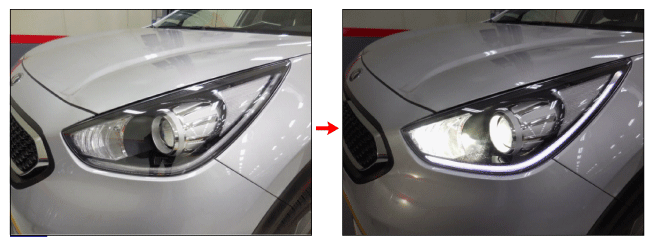

Fig 3: Head Lamp High On Performing Actuation Test Of Head Lamp High Output And Head Lamp Low Output
G12328224Courtesy of KIA MOTORS AMERICA, INC.
Good
  • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  • Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
