Circuit Diagram: (M/T)

WARNING: This page is about a different variant/trim than selected.

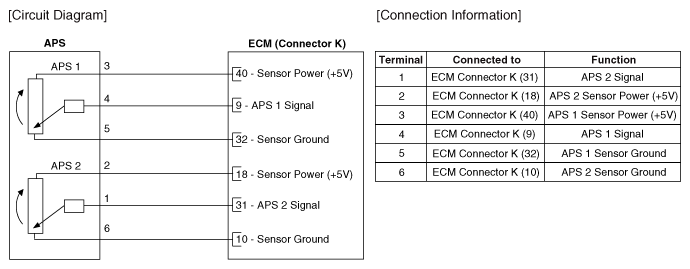

Fig 1: Accelerator Position Sensor (APS) System Circuit (M/T)

G12162469

Courtesy of KIA MOTORS AMERICA, INC.
