Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data"  mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

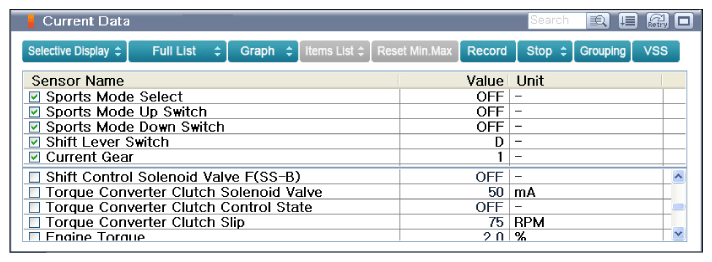

    Fig 1: Screen Display - D Range
    G12152085Courtesy of KIA MOTORS AMERICA, INC.

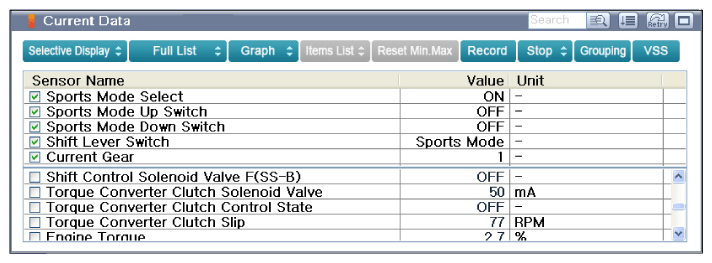

    Fig 2: Screen Display - Sports Mode ON
    G12152086Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Screen Display - Sports Mode Up Switch ON
    G12152087Courtesy of KIA MOTORS AMERICA, INC.

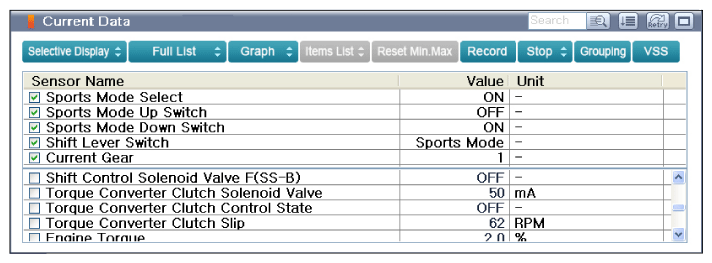

    Fig 4: Screen Display - Sports Mode Down Switch ON
    G12152088Courtesy of KIA MOTORS AMERICA, INC.
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair " procedure.

    NO
