Monitor DTC Status

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

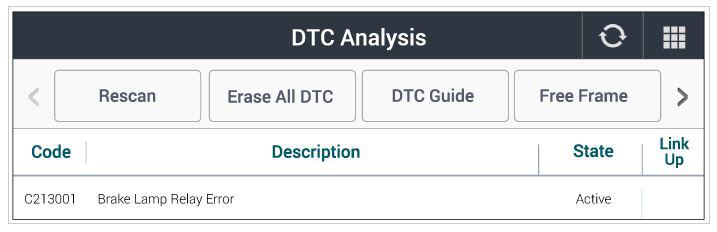

    Fig 1: Screen Display - Diagnostic Trouble Codes (DTC)
    G00581812Courtesy of KIA MOTOR AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO
