Vehicle S/W Management

CAUTION: In case of replacing HECU, perform following procedures;

■ Variant Coding

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W management" on GDS/KDS.
Perform "VARIANT CODING " in "Vehicle S/W management" with GDS/KDS.

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - Variant Code Input
Courtesy of KIA MOTORS AMERICA, INC.

■ Longitudinal G Sensor Calibration (HAC/DBC Only)

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W management" on GDS/KDS.
Perform "Longitudinal 'G' Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with GDS/KDS.

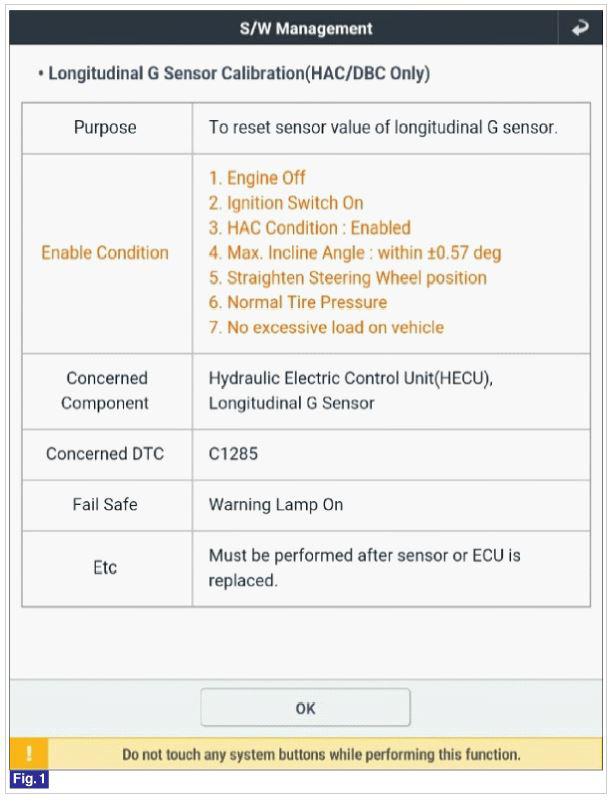

Fig 4: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

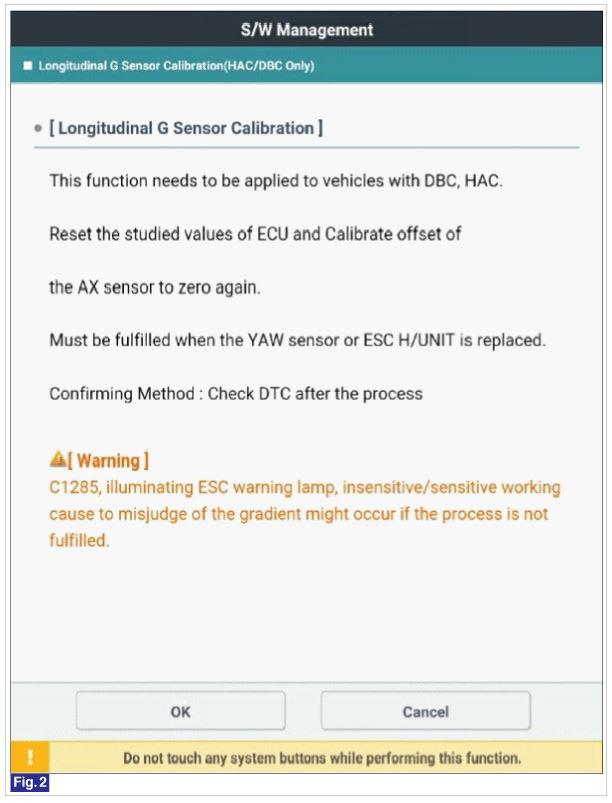

Fig 5: Scantool Display - Longitudinal 'G' Sensor Calibration (HAC/DBC Only) 1
Courtesy of KIA MOTORS AMERICA, INC.

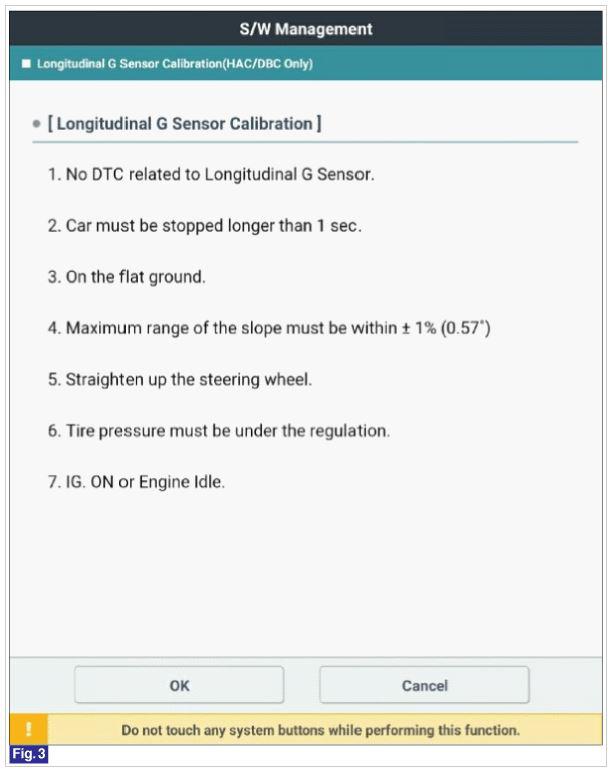

Fig 6: Scantool Display - Longitudinal 'G' Sensor Calibration (HAC/DBC Only) 2
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scantool Display - Message Complete
Courtesy of KIA MOTORS AMERICA, INC.
