Special Service Tools
Manual Transaxle System Special Service Tools
| Tool Name/Number | Illustration | Description |
|---|---|---|

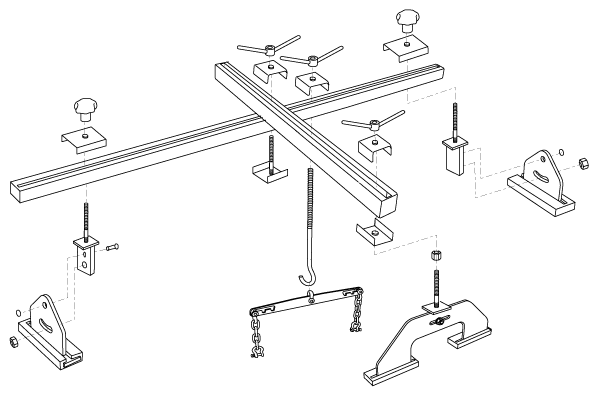

| Engine support fixture (bar) 09200-3N000 |
Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000) |
|
Engine support fixture (supporter)
|
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000) |
|
| Engine support fixture (adapter) 09200-4X000 |
Used for holding engine assembly when removing/installing transaxle Used with the engine support bar (09200-3N000) and supporter (09200-2S000) |
|
Oil seal installer
|
