[Register Sensor initialization]

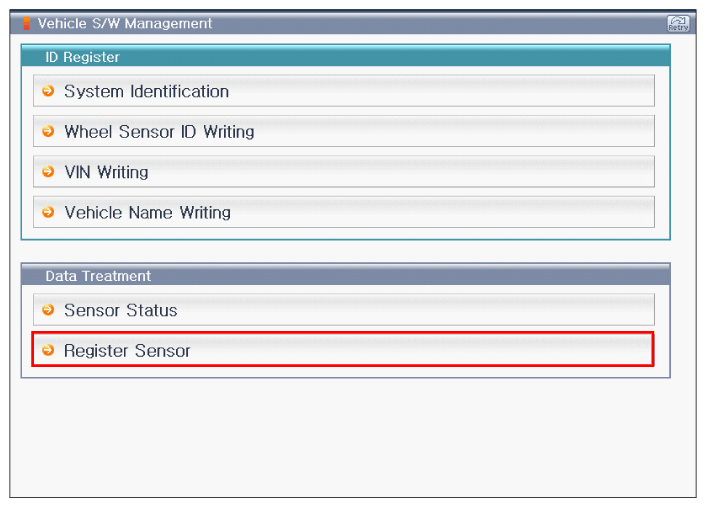

Fig 1: Scantool Display - Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

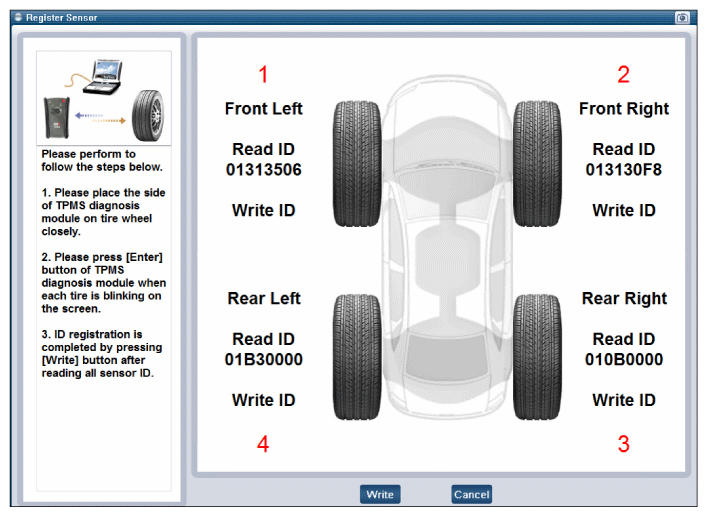

Fig 2: Scantool Display - Register Sensor Initialization

Courtesy of KIA MOTORS AMERICA, INC.

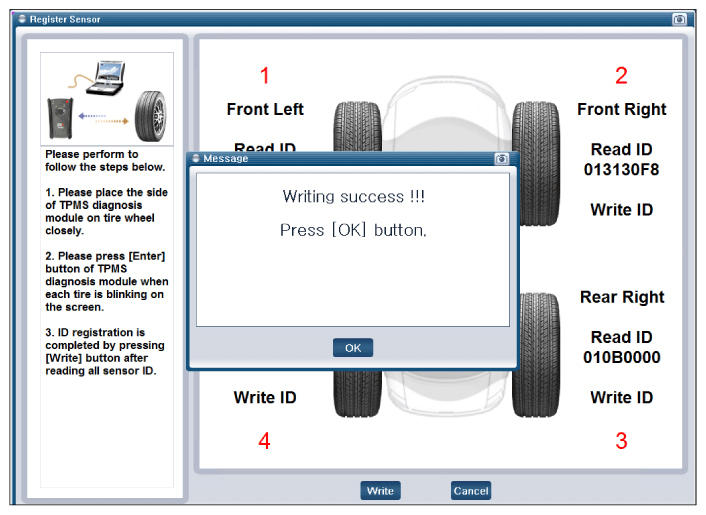

Fig 3: Scantool Display - Writing Success

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Write ID Read ID and be sure to check are the same.
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
