Monitor KDS/GDS Data

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON"& Engine "OFF", select "Current Data  " mode.
  3. Monitor the "OCS Type2 Real-Time Status" parameter on the KDS/GDS.

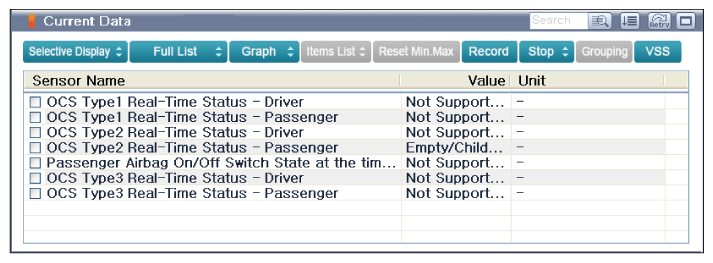

    Fig 1: Scantool Display - OCS Type 2 Real-Time Status
    G12216439Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or Passenger Weight Classification Sensor Mat & ECU connector or was repaired and Passenger Weight Classification Sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
