Components And Components Location: Components

[LH]

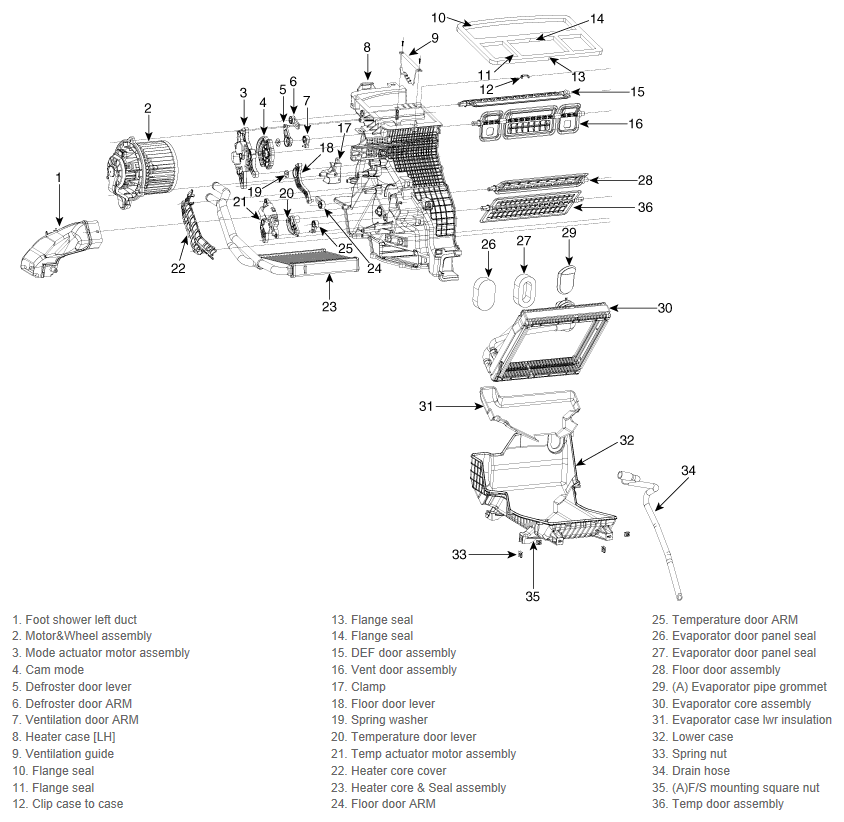

Fig 1: Heater Unit Components Location (LH)
G12238162Courtesy of KIA MOTORS AMERICA, INC.

[RH]

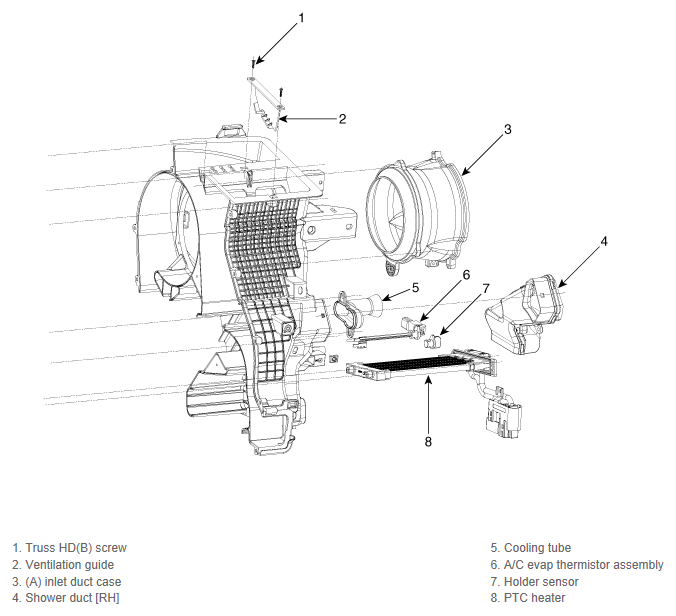

Fig 2: Heater Unit Components Location (RH)
G12238163Courtesy of KIA MOTORS AMERICA, INC.
