Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System >> Compressor >> Components And Components Location >> Components

Components And Components Location: Components

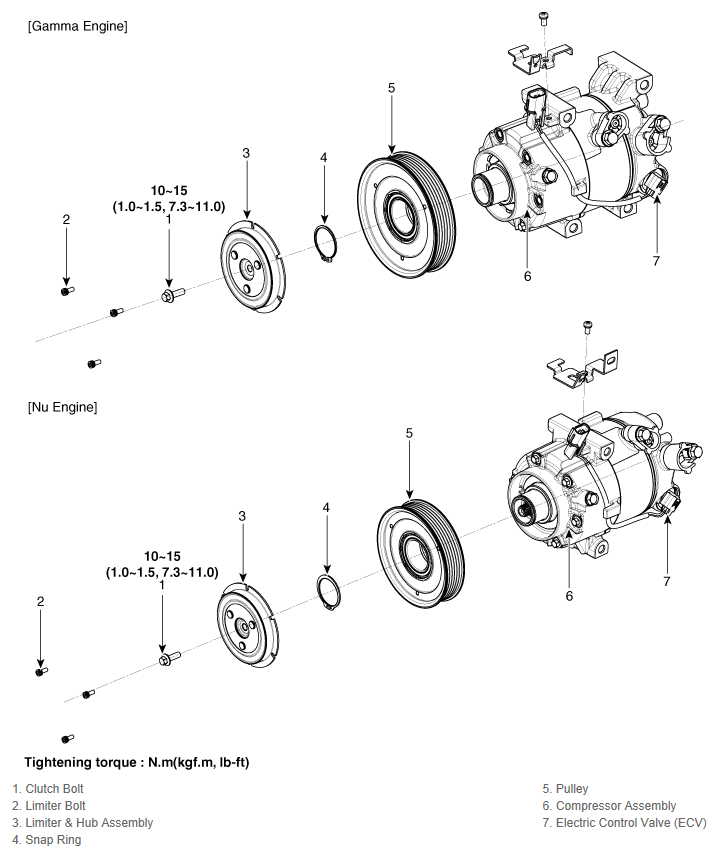

Fig 1: Compressor Components With Torque Specification

G12238049

Courtesy of KIA MOTORS AMERICA, INC.
