DTC P2101: Throttle Actuator Control Motor Circuit Range/Performance: Specification

Item	Specification
ETC Motor Resistance (Ω)	Approx. 2 ~ 3Ω [20°C (68 °F)]

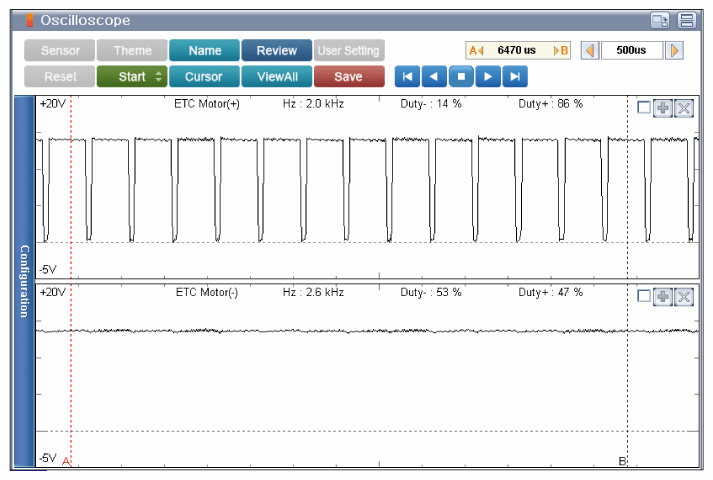

Fig 1: Scantool Display - Engine Idle After Warm-Up

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Motor (-) → Not in Control

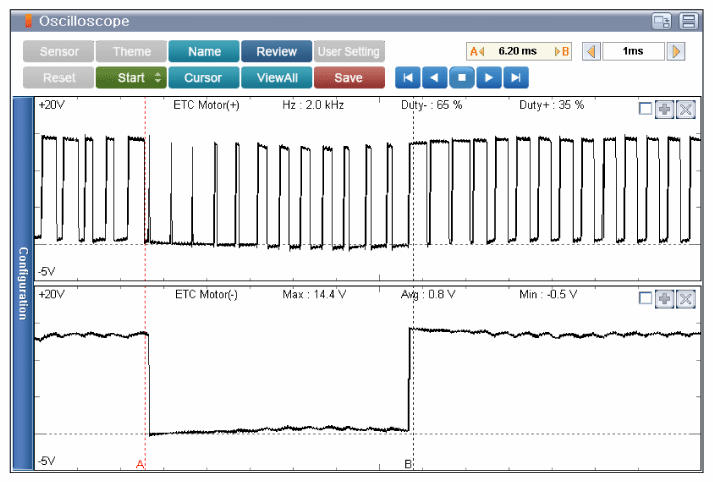

Fig 2: Scantool Display - Waveform Of ETC Motor Operation Immediately When Accelerating Engine

Courtesy of KIA MOTORS AMERICA, INC.
