Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor Injector related parameter on the "Current Data  " with KDS/GDS.

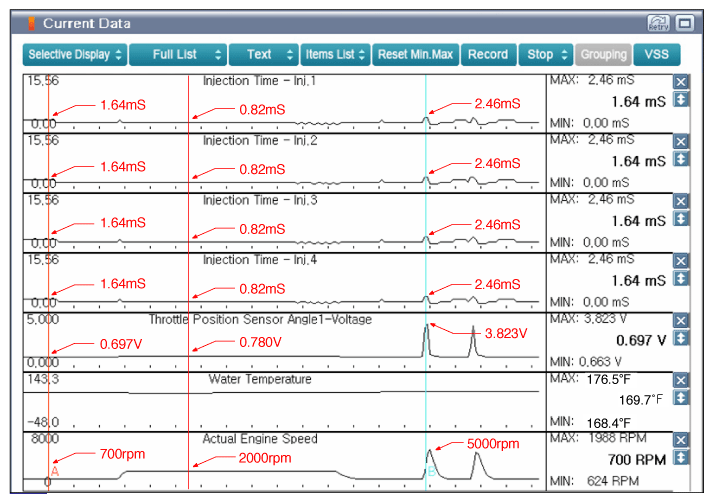

    Fig 1: Scantool Display - Engine Idle After Warm-Up At Approx 2000RPM During Acceleration
    G12212091Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "Injector" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
