Monitor KDS/GDS Data

DTC Status Check

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)  " with KDS/GDS.

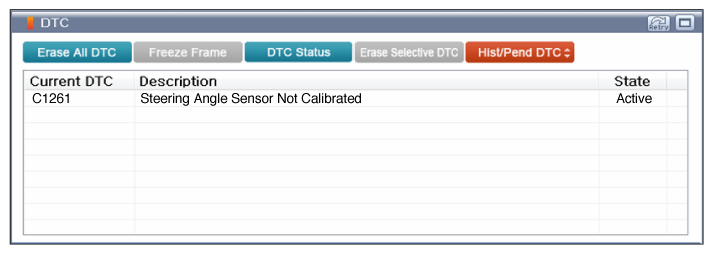

    Fig 1: Scantool Display - Diagnostic Trouble Codes
    G12209341Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Go to "Current Data Inspection" procedure.

    NO

Current Data Inspection

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Align front wheels straight.
  3. Ignition "ON".
  4. turn the steering wheel to left and right.
  5. Monitor "Steering Angle Sensor (CAN) (ESP Only)" parameter in "Current Data  " with KDS/GDS.

    Specification:  Approx. -520° ~ +530°

    Fig 2: Scantool Display - Steering Angle Sensor (CAN) Or ESP Only Parameter In Current Data
    G12209342Courtesy of KIA MOTORS AMERICA, INC.
  6. Is parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.

    NO

    • Go to "Steering Angle Sensor (SAS) Calibration" procedure.

Steering Angle Sensor (SAS) Calibration

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Align front wheels straight.
  3. Ignition "ON".
  4. Perform "Steering Angle Sensor (SAS) Calibration" on "Vehicle S/W Management  " in EPS system with KDS/GDS.

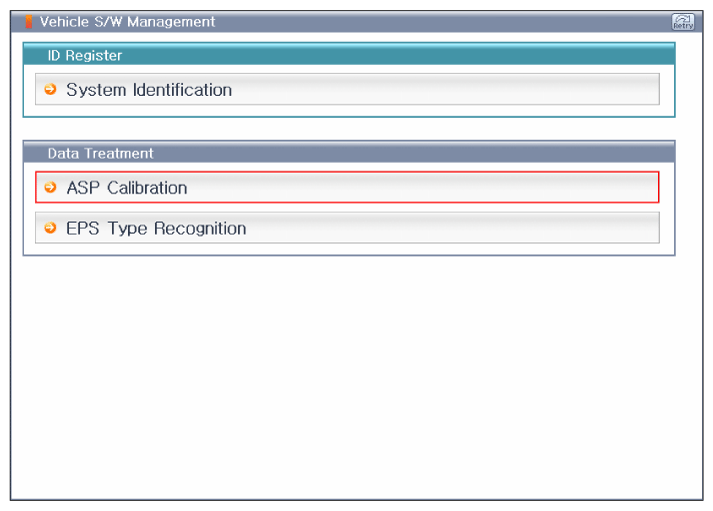

    Fig 3: Scantool Display - Vehicle S/W Management
    G12209343Courtesy of KIA MOTORS AMERICA, INC.

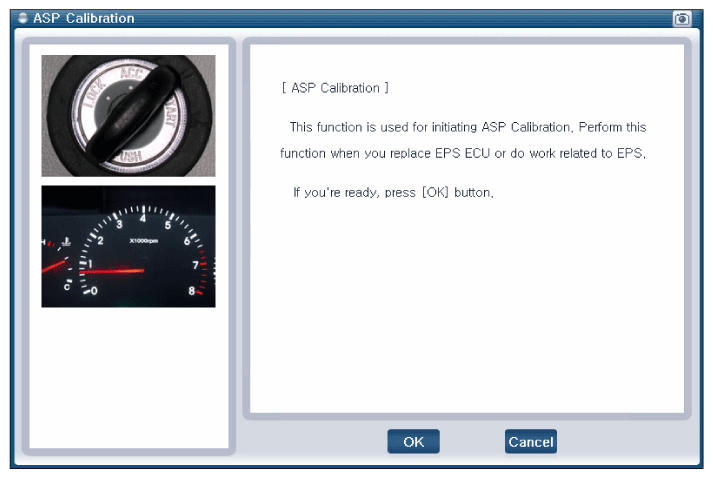

    Fig 4: Scantool Display - ASP Calibration
    G12209344Courtesy of KIA MOTORS AMERICA, INC.
    Fig 5: Scantool Display - ASP Calibration (Press Ok Button)
    G12209345Courtesy of KIA MOTORS AMERICA, INC.
    Fig 6: Scantool Display - Initializing Completed
    G12209346Courtesy of KIA MOTORS AMERICA, INC.
  5. Operate vehicle or system according to enable condition.
  6. Check for "Diagnostic Trouble Codes (DTC)  " with KDS/GDS.
  7. Is DTC status displayed as Present?

    YES

    • Substitute with known-good MDPS Assembly and check for proper operation. If problem is corrected, replace MDPS Assembly and then go to "Verification of Vehicle Repair " procedure.
    CAUTION: In case of replacing MDPS Assembly, perform following procedures.
    1. "EPS Type Recognition" for load accurate EPS type into ECU.
    2. "ASP Calibration" for steering angle sensor offset correction.

    NO

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
