Monitor KDS/GDS Data

  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data  " with KDS/GDS.

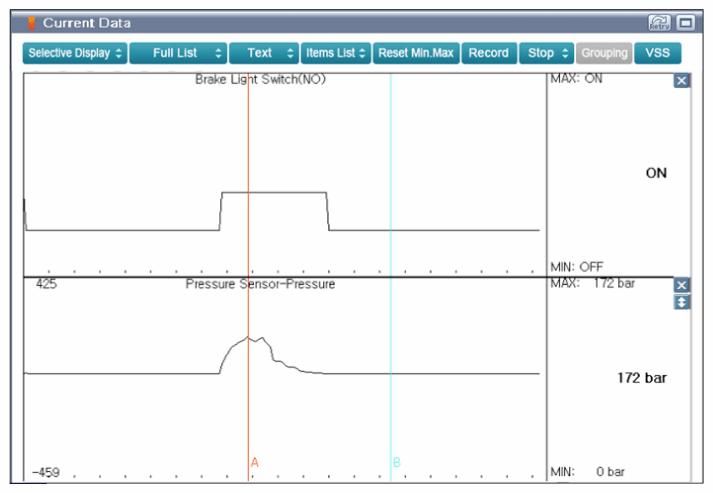

    Fig 1: Scantool Display - Normal Current Data
    G12209325Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed normally?

    YES

    NO
