Repair Procedures: Inspection

The windshield deicer switch inputs can be checked using the GDS.
To check the input value of windshield deicer switch, select option "Body Control Module".
Select option "Current Data".

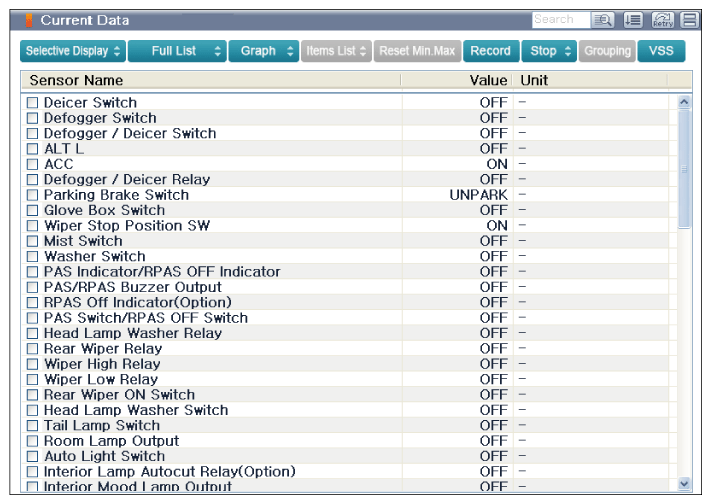

Fig 1: Screen Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To perform functional test on SJB outputs, select "Actuation Test".

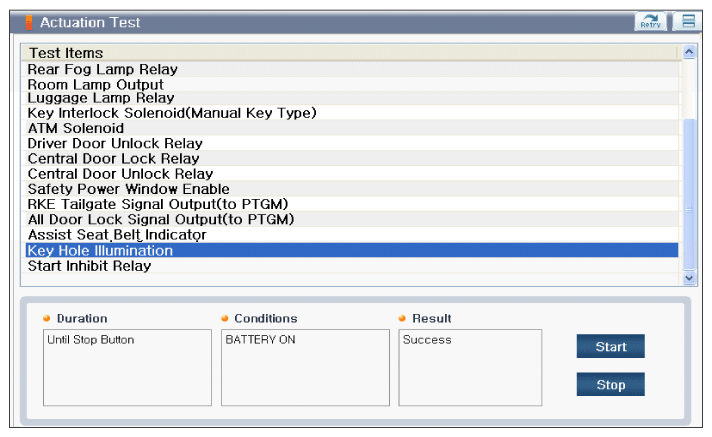

Fig 2: Screen Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
