Monitor DTC Status

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
Click the DTC (1), and then Select "Fault Code Information" items (2).
Accordance with the type of detail of "Fault Code Information", Must be checked.
Specification:

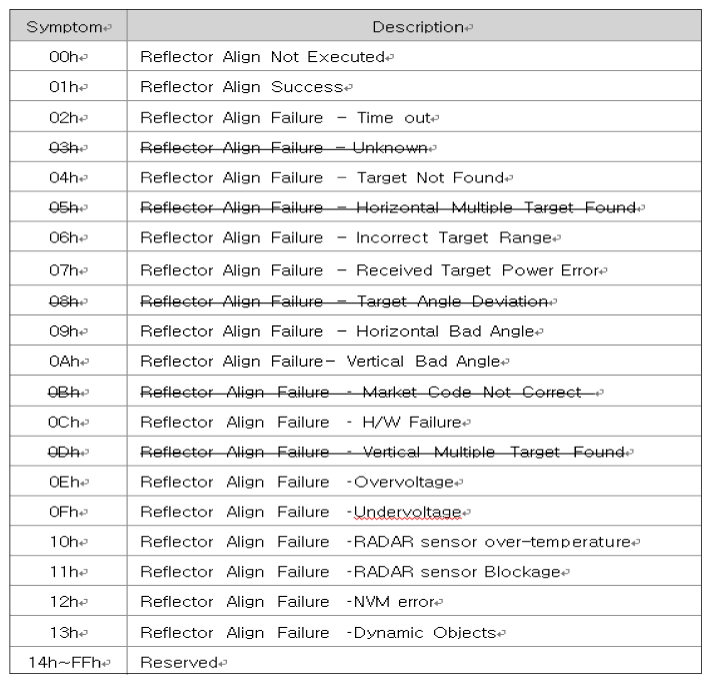

Fig 1: Fault Code Information Chart
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status display?
YES
- Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
  * Go to "Vehicle S/W Management " procedure.
NO
- This fault was repaired and SCC Module memory was not cleared. Go to "Verification of Vehicle Repair " procedure.
