Component Inspection

Check Battery Sensor Performance

1. Ignition "OFF"
2. Connnect CH A probe to LIN signal terminal of battery sensor connector.
3. Warm up the engine to normal operating temperature.

   Specification:  Refer to Signal Waveform & Data

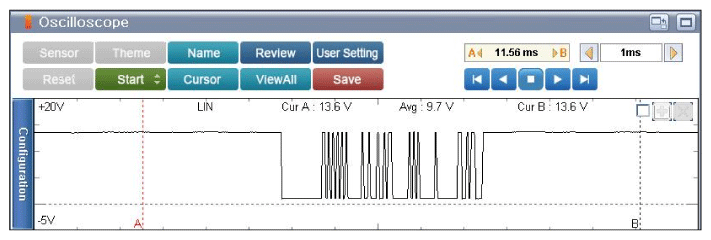

   Fig 1: Screen Display - LIN Signal Of Battery Sensor

   Courtesy of KIA MOTORS AMERICA, INC.

Confirm Part Inspection

1. Does the battery sensor operate properly? (Check variation)

   YES

   • Go to "Verification Of Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace battery sensor and then go to "Verification Of Repair " procedure.
