Signal Waveform & Data

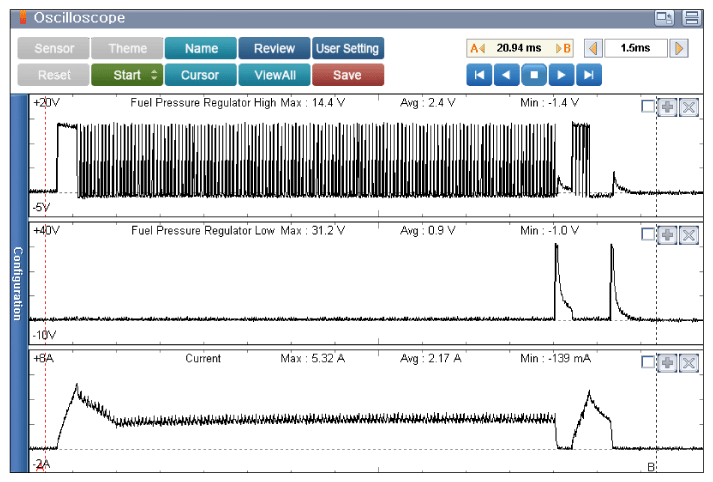

Fig 1: Screen Display - Engine Idle After Warm Up

G12282790

Courtesy of KIA MOTORS AMERICA, INC.

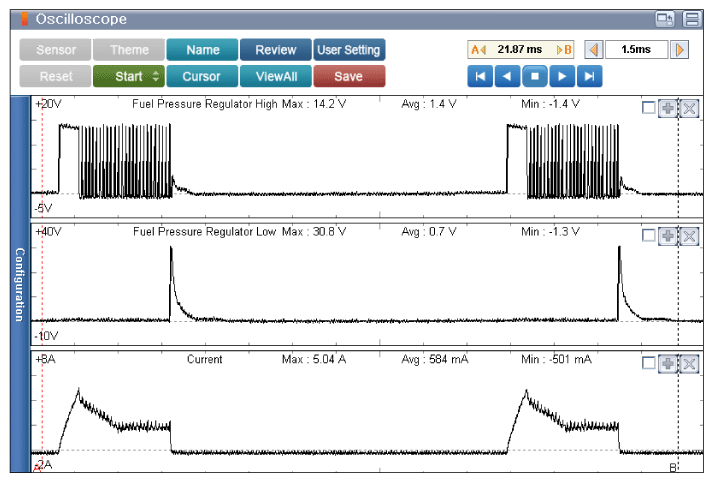

Fig 2: Screen Display - Approx. 2000RPM

G12282791

Courtesy of KIA MOTORS AMERICA, INC.
