System Inspection

Resetting Adaptive Values

1. Connect KDS/GDS to DLC (Data Link Cable).
2. Ignition "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.
   Fig 1: Screen Display - Select Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - Press OK Button (Ignition ON, Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

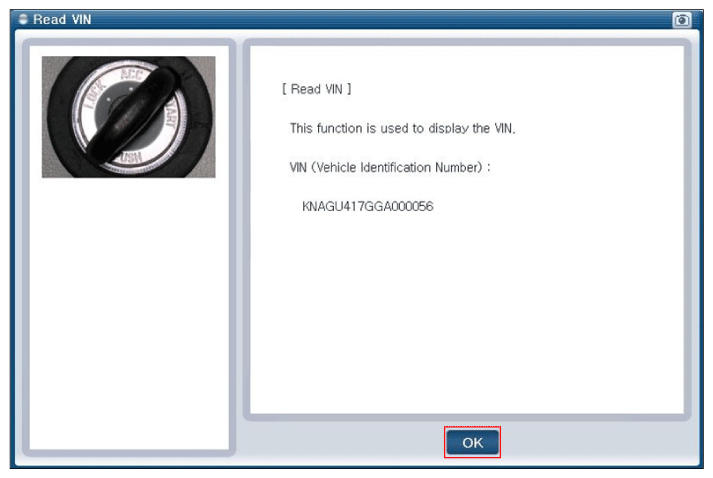

   Fig 3: Screen Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Screen Display - Select Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.

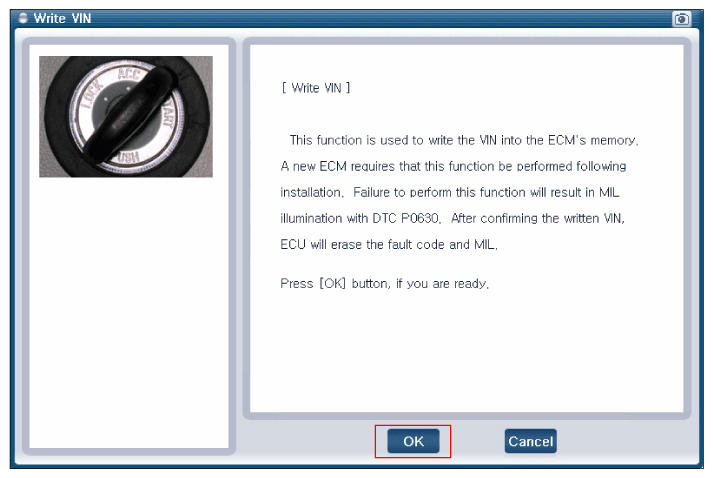

   Fig 5: Screen Display - Press OK Button (Ignition ON, Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 6: Screen Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "Verification Of Repair " procedure.
