Monitor KDS/GDS Data

  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Check the "Current Data  " about related DTC with KDS/GDS during Cranking the engine.

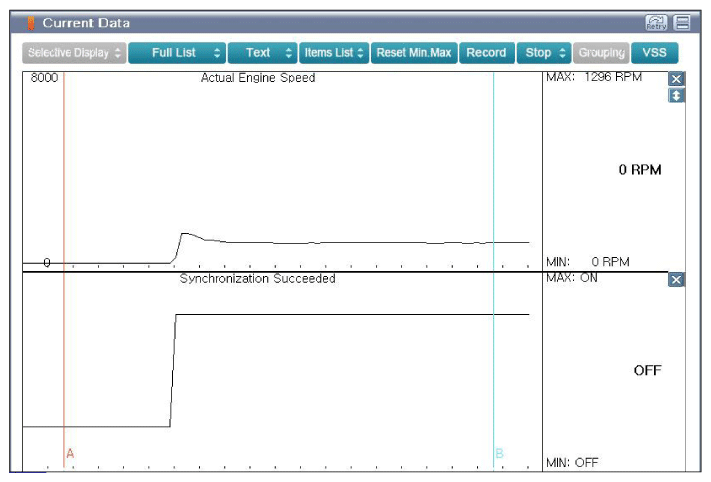

    Fig 1: Scantool Display - Synchronization Of CKPS & CMPS
    G12282549Courtesy of KIA MOTORS AMERICA, INC.
  3. If the parameter is not similar with shown data, measure related waveforms with KDS/GDS.
    Fig 2: Scantool Display - Normal Waveforms Of CKPS, CMPS-IN At Engine Idle
    G12282550Courtesy of KIA MOTORS AMERICA, INC.
    1. A: CKPS & CMPS (Intake side) Synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.

    NO
