Component Location

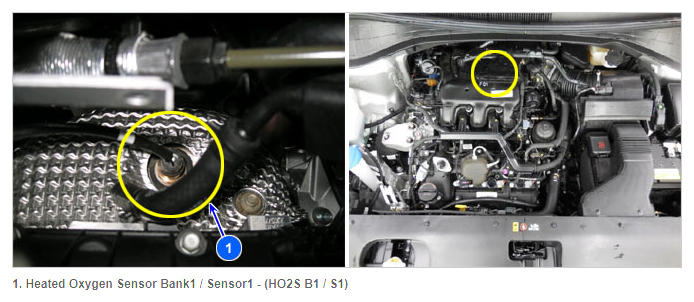

Fig 1: Locating Heated Oxygen Sensor Bank 1 Or Sensor 1
G12167142Courtesy of KIA MOTORS AMERICA, INC.
