Assist Power Window Switch

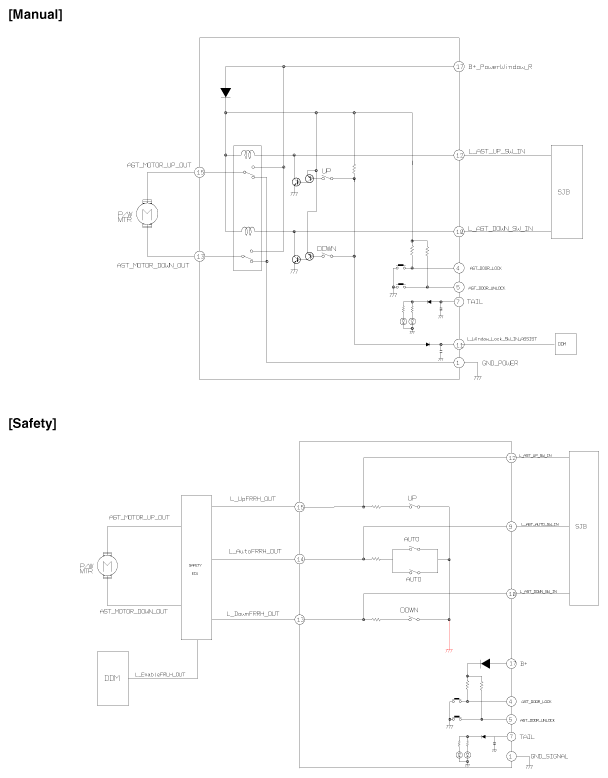

Fig 1: Assist Power Window Switch Circuit Diagram

G12176730

Courtesy of KIA MOTORS AMERICA, INC.
