Signal Waveform & Data

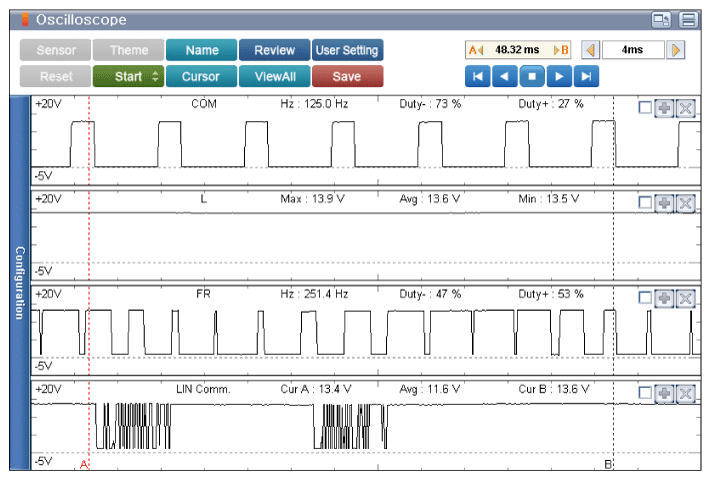

Fig 1: Scantool Display - Alternator Signal Waveform At Idle And No Electrical Load
G12174105Courtesy of KIA MOTORS AMERICA, INC.

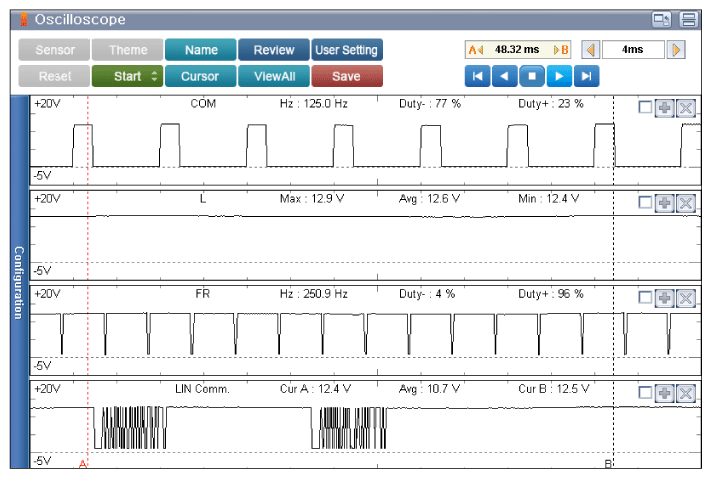

Fig 2: Scantool Display - Alternator Signal Waveform At Idle And Electrical Load
G12174106Courtesy of KIA MOTORS AMERICA, INC.
