Home >> Kia >> 2017 >> Sorento L >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.4L >> Fuel Pump Control Module (EPCM) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

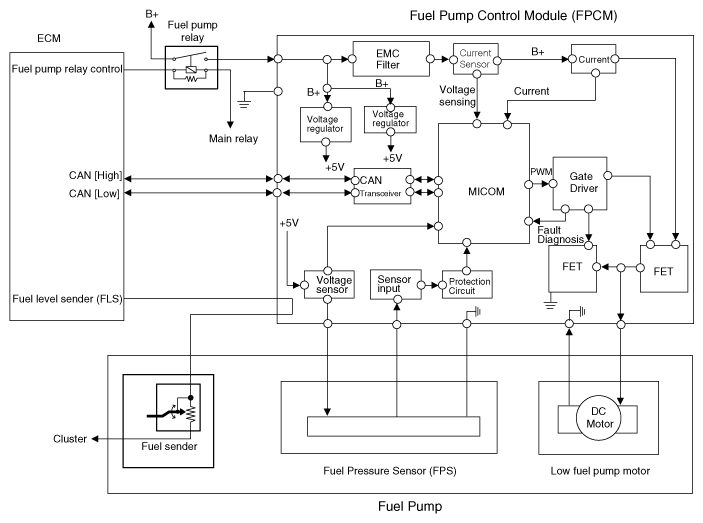

Fig 1: Fuel Pump Control Module Circuit Diagram

G12180362

Courtesy of KIA MOTORS AMERICA, INC.
