Tolerance Compensation Environments

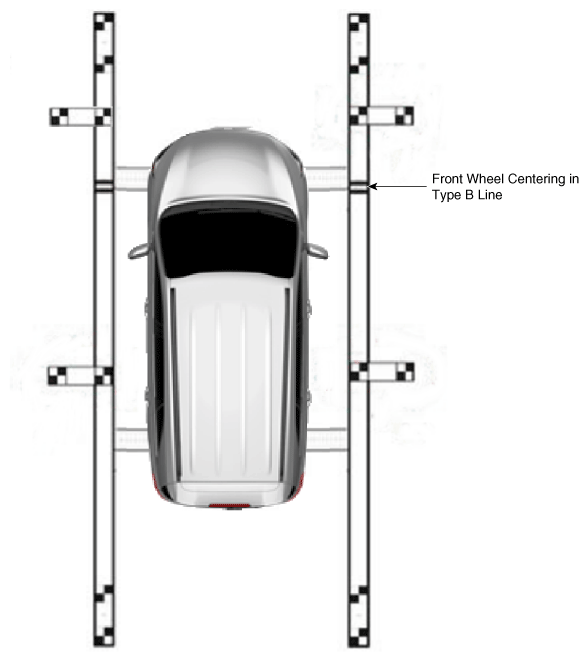

Fig 1: Vehicle Tolerance Compensation Environments
G12176991Courtesy of KIA MOTORS AMERICA, INC.
NOTE: There are two types of tolerance compensations: [manual tolerance compensation] and [automatic tolerance compensation].
The service center with the SVM exclusive workshop performs [automatic tolerance compensation].
The maintenance environment lacking an SVM exclusive workshop performs [manual tolerance compensation].
