Components And Components Location: Components

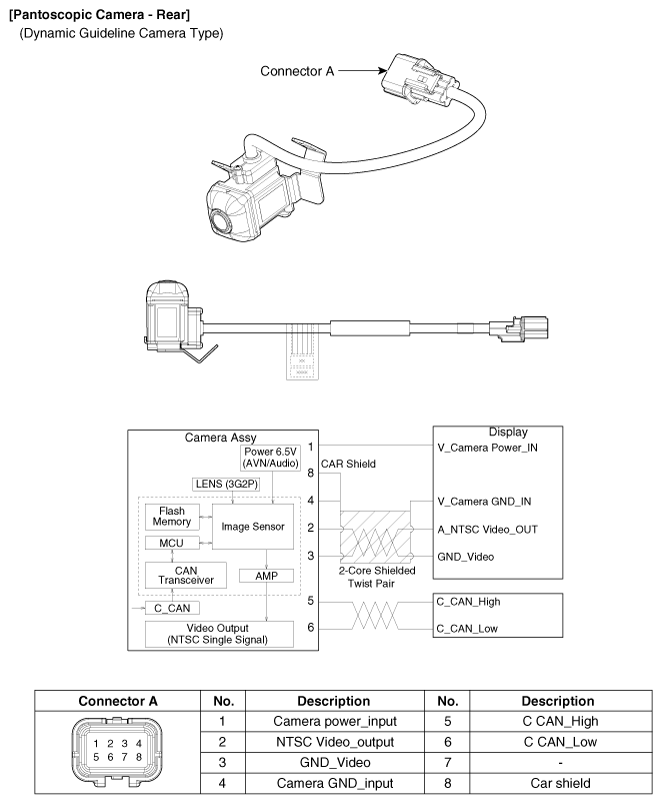

Fig 1: Locating Pantoscopic Camera & Circuit Diagram (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

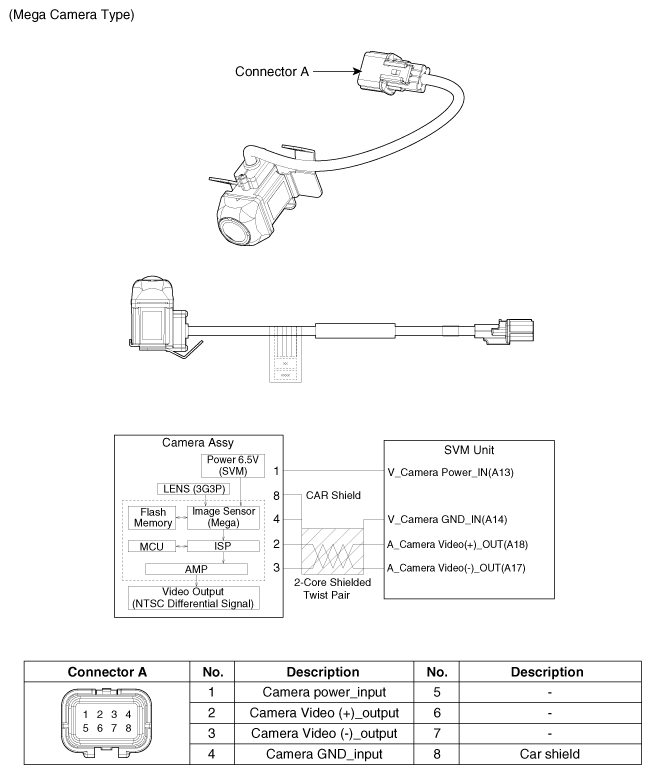

Fig 2: Locating Pantoscopic Camera & Circuit Diagram (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

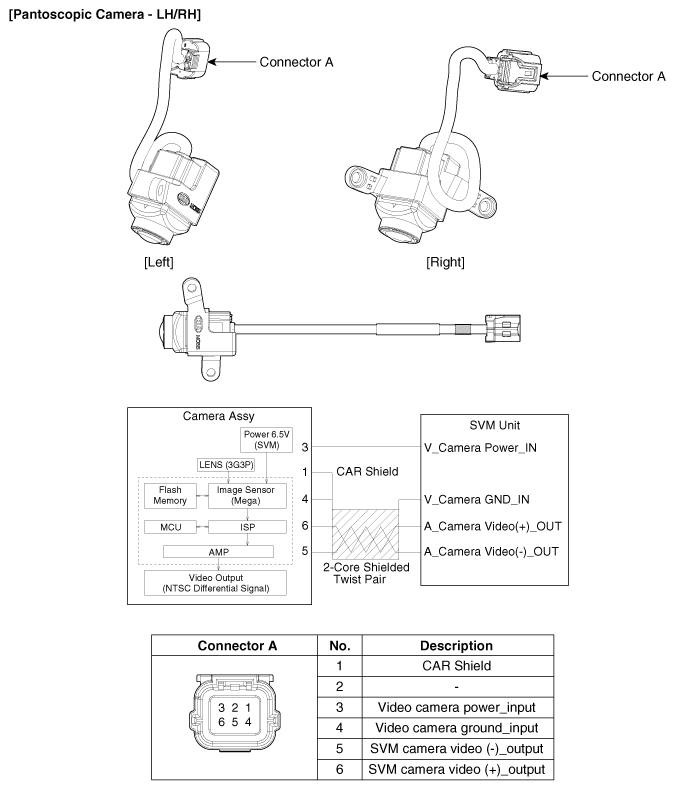

Fig 3: Locating Pantoscopic Camera & Circuit Diagram (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

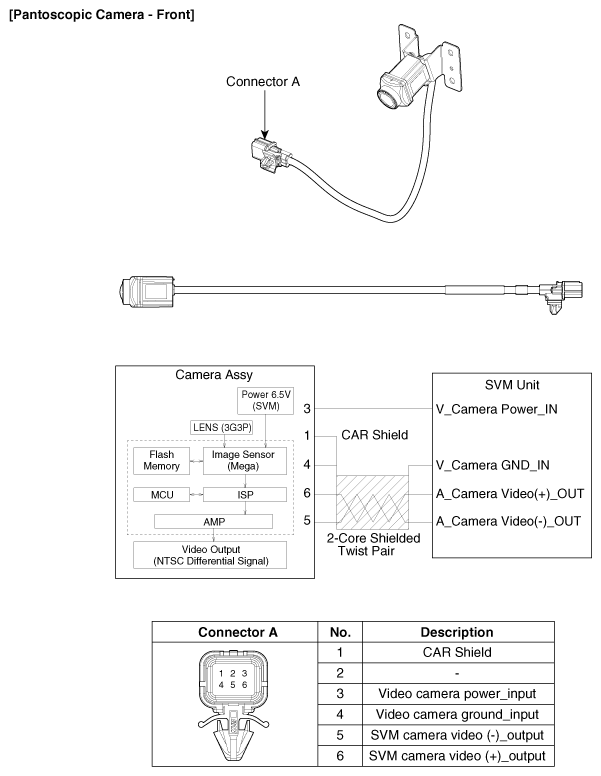

Fig 4: Locating Pantoscopic Camera & Circuit Diagram (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
