Component Inspection: Notes

■ SPTAC calibration procedure (Using calibration target)

1. Ignition switch "OFF"
2. Connect GDS to Data Link Connector (DLC).
3. Ignition switch "ON"
4. Select "Vehicle S/W Management"  on GDS.
5. Perform "SPTAC calibration" in "Vehicle S/W Management" with GDS.

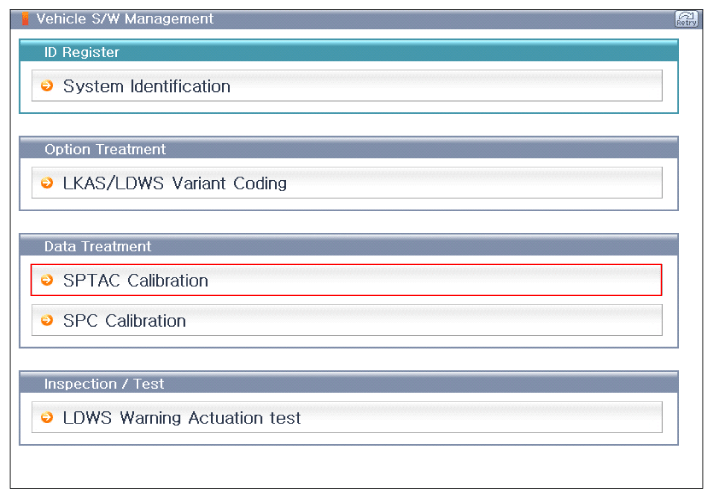

   Fig 1: Screen Display - LDWS/LKAS S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.

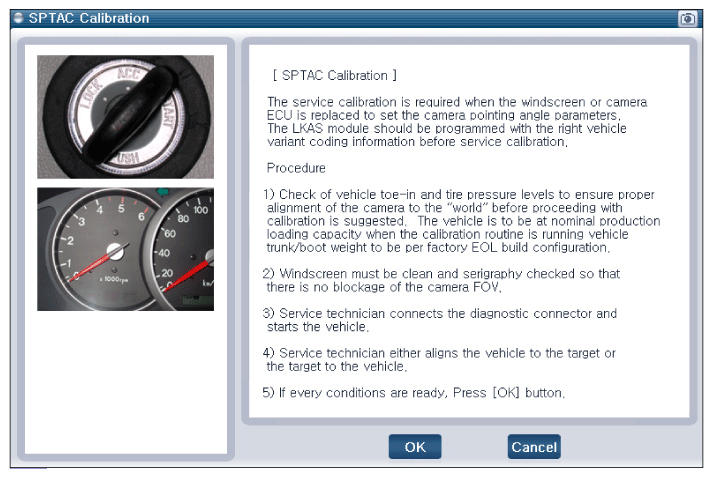

   Fig 2: Screen Display - LDWS/LKAS SPTAC Calibration 1

   Courtesy of KIA MOTORS AMERICA, INC.

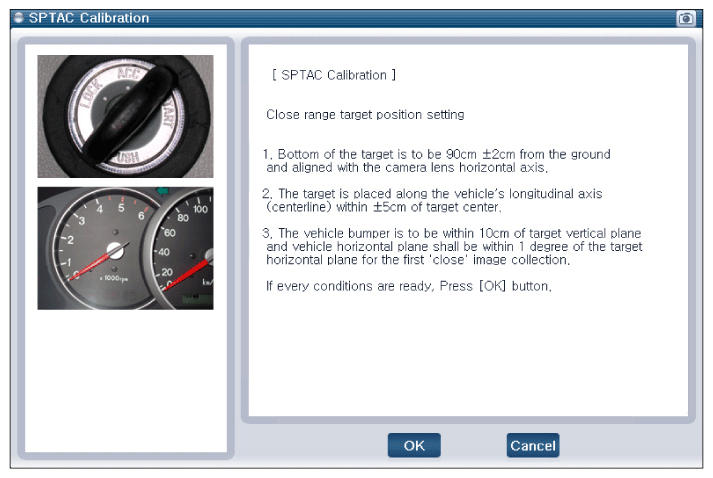

   Fig 3: Screen Display - LDWS/LKAS SPTAC Close Range Calibration

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Screen Display - LDWS/LKAS SPTAC Far Range Calibration

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 5: Screen Display - LDWS/LKAS SPTAC Calibration 3

   Courtesy of KIA MOTORS AMERICA, INC.
6. Clear any DTCs stored in the system with KDS/GDS.
7. Re-check DTC in the system with KDS/GDS.
8. Did the same DTC is stored in the system?

   YES

   • Carefully re-do this troubleshooting guide steps.

   NO

   • If no problems still occurs, replace LDWS/LKAS ECU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   • Fault might be caused by not performing variant coding after LDWS/LKAS ECU replacement. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
