BSD Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
  2. Select "BSD Radar Calibration" procedure in BSD system.
    Fig 1: Screen Display - BSD Radar Calibration
    G12173644Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the "BSD Radar Calibration" procedure according to the GDS screen message.

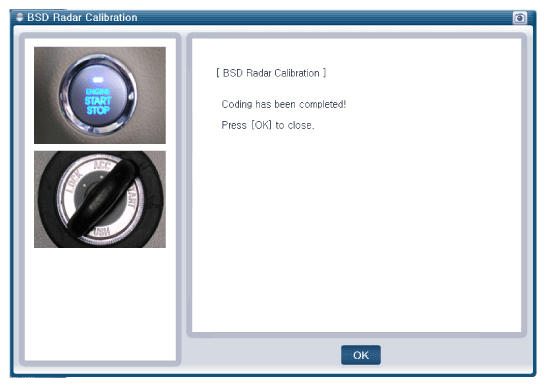

    Fig 2: Screen Display - BSD Radar Calibration
    G12173645Courtesy of KIA MOTORS AMERICA, INC.
